AMDLA4530Q-4R7MT

Fixed Inductors Overview

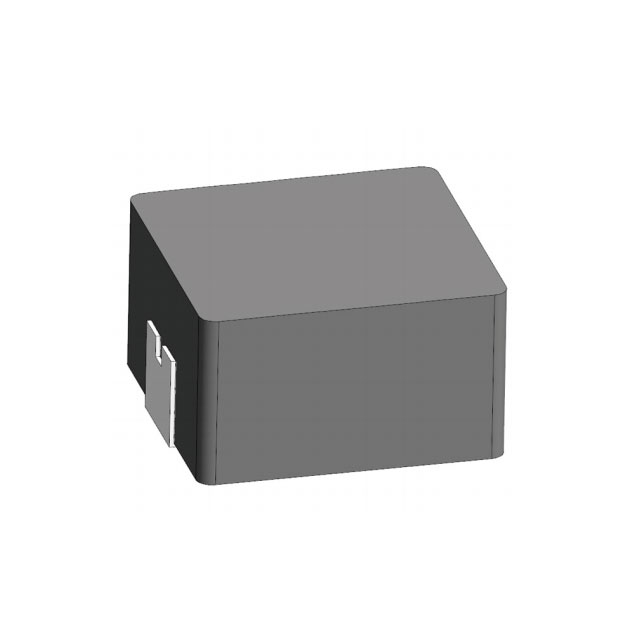

The Abracon LLC AMDLA4530Q-4R7MT is an automotive-grade shielded power inductor from the AMDLA4530Q series. It features a metal alloy core and molded construction, designed for high reliability under AEC-Q200 standards. The component has an inductance of 4.7 uH with a 20% tolerance. Key electrical parameters include a maximum DC resistance of 52 mOhms and a saturation current of 5 A. The physical dimensions are 4.9 mm x 4.7 mm x 3.0 mm. It operates within a temperature range of -55°C to +155°C and utilizes SMD/SMT termination.

Fixed Inductors Feature Summary

• Automotive-grade reliability compliant with AEC-Q200 test conditions.
• Shielded design minimizes electromagnetic interference (EMI).
• Molded metal alloy core ensures structural integrity and thermal stability.
• Low DC resistance supports efficient power delivery in switching applications.

Fixed Inductors Applications

• Industrial power supply circuits
• Automotive electronics systems
• DC-DC converter modules

Fixed Inductors Procurement Notes

Verify that the specific part number matches the required inductance and current ratings for your circuit design. Confirm compliance with AEC-Q200 standards if automotive qualification is mandatory. Check RoHS status and manufacturing certifications such as IATF-16949 to ensure supply chain quality requirements are met before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when high-temperature operation up to 155°C is required. The shielded structure is suitable for space-constrained PCBs where EMI suppression is critical. Ensure the 5 A saturation current meets the peak load demands of the application. Compare physical footprint compatibility against existing board layouts.

Fixed Inductors Part Context

This component belongs to the AMDLA4530Q series of fixed inductors manufactured by Abracon LLC. The series is characterized by its automotive-grade construction and suitability for high-frequency switching applications between 100 kHz and 2 MHz. It serves as a specialized passive component for robust electronic environments.

Fixed Inductors Replacement Considerations

Cross-reference with other AEC-Q200 qualified inductors sharing identical 4.7 uH inductance and similar 4.9x4.7 mm footprints. Verify that substitute parts meet or exceed the 52 mOhm DCR and 5 A saturation current specifications to maintain circuit performance.

Fixed Inductors FAQ

What is the operating temperature range?

The component operates effectively within a temperature range of -55°C to +155°C.

Is this inductor shielded?

Yes, the AMDLA4530Q-4R7MT features a shielded design to reduce electromagnetic interference.
