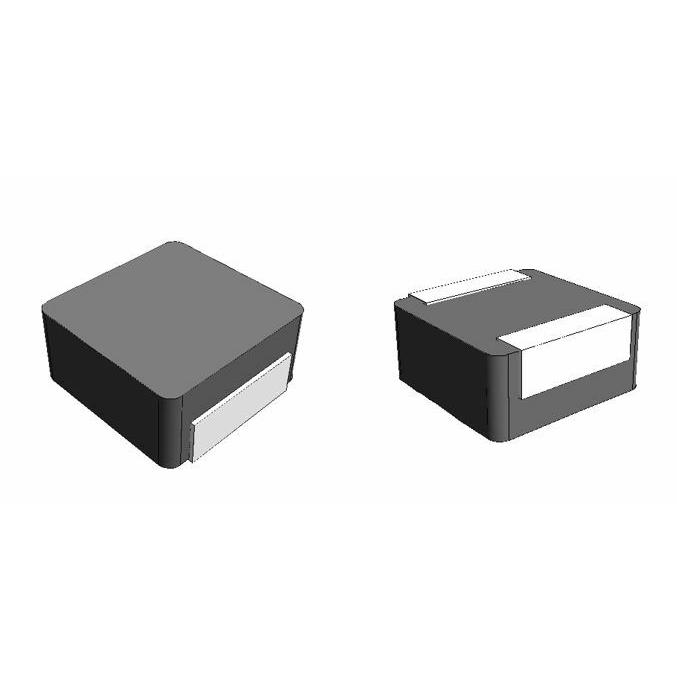

AMDLH4020S-5R6MT

$0.35

Description：FIXED IND 5.6UH 3.1A 75.6MOHM SM
Series：AMDLH4020S
Mfr：Abracon LLC
Package：Tape & Reel (TR)

SKU:5d88e8df8a48 Category: Fixed Inductors Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AMDLH4020S-5R6MT is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is FIXED IND 5.6UH 3.1A 75.6MOHM SM. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for AMDLH4020S-5R6MT

Description：FIXED IND 5.6UH 3.1A 75.6MOHM SM
Series：AMDLH4020S
Mfr：Abracon LLC
Package：Tape & Reel (TR)
Type：Molded
Material - Core：Alloy
Inductance：5.6 µH
Tolerance：±20%
Current Rating (Amps)：4.1 A
Current - Saturation (Isat)：3.5A
Shielding：Shielded
DC Resistance (DCR)：75.6mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：2-SMD, J-Lead
Supplier Device Package：-
Size / Dimension：0.165" L x 0.161" W (4.20mm x 4.10mm)
Height - Seated (Max)：0.083" (2.10mm)
Features：Low DCR, Soft Saturation

Fixed Inductors datasheet and documents for AMDLH4020S-5R6MT

AMDLH4020S-5R6MT

Fixed Inductors Overview

The Abracon AMDLH4020S-5R6MT is a shielded surface-mount power inductor with an 8.2 µH nominal inductance and ±20% tolerance. It features a maximum DC resistance of 118.5 mΩ, a saturation current of 2.9 A, and a rated current of 2.6 A. The component utilizes a metal alloy core and operates within a temperature range of -40°C to +125°C. Its compact SMD package measures 4.2 mm in length and 2.0 mm in width.

Fixed Inductors Feature Summary

Shielded construction utilizing a metal alloy core for enhanced magnetic containment
Low direct current resistance design optimized for efficiency in power circuits
Soft saturation characteristics suitable for switching converter applications

Fixed Inductors Applications

DC/DC Switching Converters
Power Supplies

Fixed Inductors Procurement Notes

Verify the specific part number suffix against official Abracon documentation to confirm exact electrical parameters. Cross-reference datasheet values for inductance, saturation current, and DC resistance to ensure compatibility with target circuit requirements before procurement.

Fixed Inductors Selection Notes

Select this component for space-constrained designs requiring shielded performance. Evaluate thermal management needs based on the specified operating temperature range. Ensure input voltage and current levels remain within the defined saturation and rated current limits for reliable operation.

Fixed Inductors Part Context

This component belongs to the AMDLH series of shielded power inductors manufactured by Abracon LLC. The series is designed for surface-mount technology, offering a balance of high current handling capabilities and low profile dimensions suitable for modern electronic assemblies.
