Product Detailed Parameters
- Description：CMC 2LN THROUGH HOLE INDUSTRIAL
- Series：AMFW110-NZ
- Mfr：aimtec
- Package：Box
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：66V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：Industrial
- Mounting Type：Through Hole
- Size / Dimension：-
- Height (Max)：0.925" (23.50mm)
- Package / Case：-
- Inductance @ Frequency：-
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

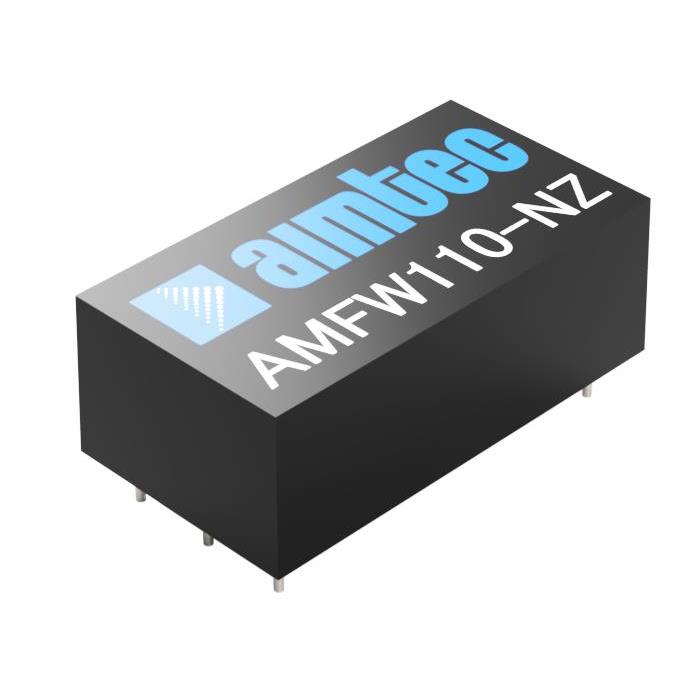

The AMFW110-0.9NZ is a two-line common mode choke designed for power line filtering applications. It features an ultra-wide input voltage range of 66 to 160VDC and operates within a temperature range of -40°C to +85°C. The component provides high isolation voltage of 1500VAC and includes input overvoltage protection. It is EMC compliant and utilizes through-hole mounting with a maximum height of 23.50mm.
Feature Summary
- Ultra-wide DC input voltage compatibility
- High isolation voltage rating
- Integrated input overvoltage protection
- EMC compliance for system noise reduction
Applications
- Power supply converter EMC filtering
- Industrial equipment power line protection
- Systems requiring high isolation voltage
Procurement Notes
Verify the specific suffix requirements for your application, as variants like AMFW110-0.9NZ-ST exist. Confirm that the 160VDC rating aligns with your system's maximum operating voltage. Ensure through-hole mounting space accommodates the 23.50mm height. Check RoHS3 compliance status if required by your manufacturing standards.
Selection Notes
Select this component when high isolation and wide input voltage ranges are critical. It is suitable for environments requiring robust overvoltage protection. Consider the physical dimensions for PCB layout constraints. Verify thermal performance within the specified -40°C to +85°C operating range for your specific installation conditions.
Part Context
This part belongs to Aimtec's AMFW110-NZ series of EMC filters. These components are engineered to enhance electromagnetic compatibility in power systems. The series focuses on providing reliable filtering solutions for industrial and commercial power supplies. Aimtec designs these modules to meet stringent regulatory standards for emissions and immunity.
Replacement Considerations
Check for direct substitutes within the AMFW110-NZ family, such as AMFW110-0.9NZ-ST or AMFW110-0.9NZ-105. Ensure any replacement matches the 160VDC rating and 1500VAC isolation. Verify pinout compatibility and mechanical footprint before substitution.
