Product Detailed Parameters
- Description：CMC 2LN THROUGH HOLE INDUSTRIAL
- Series：AMFW48-NZ
- Mfr：aimtec
- Package：Box
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：18V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：Industrial
- Mounting Type：Through Hole
- Size / Dimension：-
- Height (Max)：0.748" (19.00mm)
- Package / Case：-
- Inductance @ Frequency：-
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

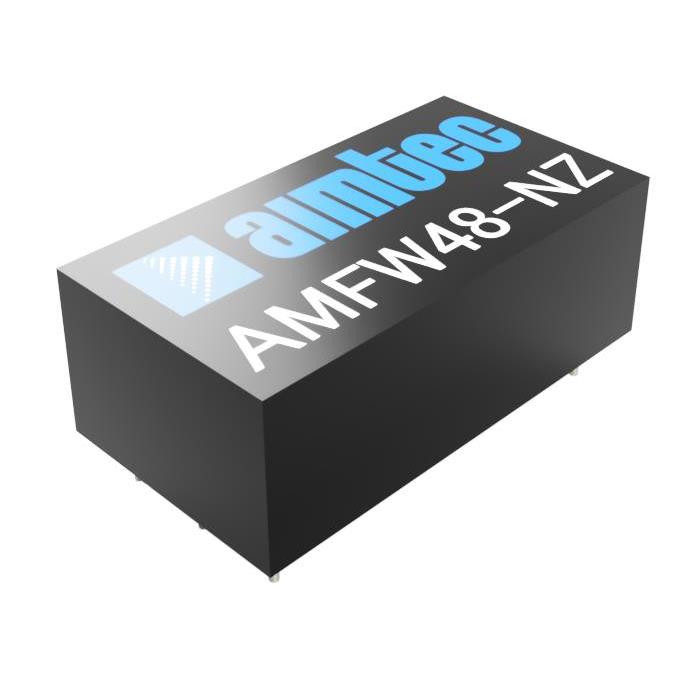

The AMFW48-0.625NZ is a single-phase power line filter module manufactured by Aimtec, designed for general-purpose electromagnetic interference suppression in DC applications. It operates within a voltage rating of 48V and supports a current rating of 10mA. The component features a through-hole mounting style with a plastic/epoxy case material, ensuring durability in industrial environments. It functions as a data line filter with one function and five pins, providing essential noise reduction capabilities for sensitive electronic circuits.
Feature Summary
- Single-phase power line filtering for DC applications
- Through-hole mounting for secure PCB integration
- Plastic/epoxy casing for environmental protection
Applications
- General-purpose electronic circuit noise suppression
- Industrial control systems requiring EMI filtering
- DC power line signal integrity enhancement
Procurement Notes
Verify the specific pin configuration and physical dimensions against your PCB layout requirements before procurement. Confirm that the 48V voltage rating and 10mA current capacity align with your system's operational parameters. Ensure the through-hole mounting style is compatible with your assembly process. Cross-reference the manufacturer datasheet to validate the plastic/epoxy material specifications for your operating environment.
Selection Notes
Select this component when a compact, single-phase filter is required for low-current DC lines. Consider the 48V rating and 10mA limit to ensure adequate performance margins. Evaluate the through-hole mounting option if mechanical stability is prioritized over surface area constraints. Compare alternative modules only if higher current or different voltage ratings are necessary for the specific application design.
Part Context
This module belongs to Aimtec's AMFW series, which specializes in power line filter solutions. The series offers various configurations tailored for different voltage and current requirements. The AMFW48-0.625NZ specifically addresses needs for 48V DC systems, providing a standardized solution for EMI mitigation in compact electronic assemblies without compromising space efficiency.
Replacement Considerations
Check Aimtec's official documentation for direct substitutes within the AMFW series that match the 48V and 10mA specifications. Verify pin compatibility and mounting style equivalence before substituting. Ensure any replacement part maintains the same single-phase filtering capability and plastic/epoxy construction standards.
