Product Detailed Parameters
- Description：CMC 2LN DIN RAIL INDUSTRIAL
- Series：AMFW72-NZ
- Mfr：aimtec
- Package：Box
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：40V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：Industrial
- Mounting Type：DIN Rail
- Size / Dimension：-
- Height (Max)：1.276" (32.40mm)
- Package / Case：-
- Inductance @ Frequency：-
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

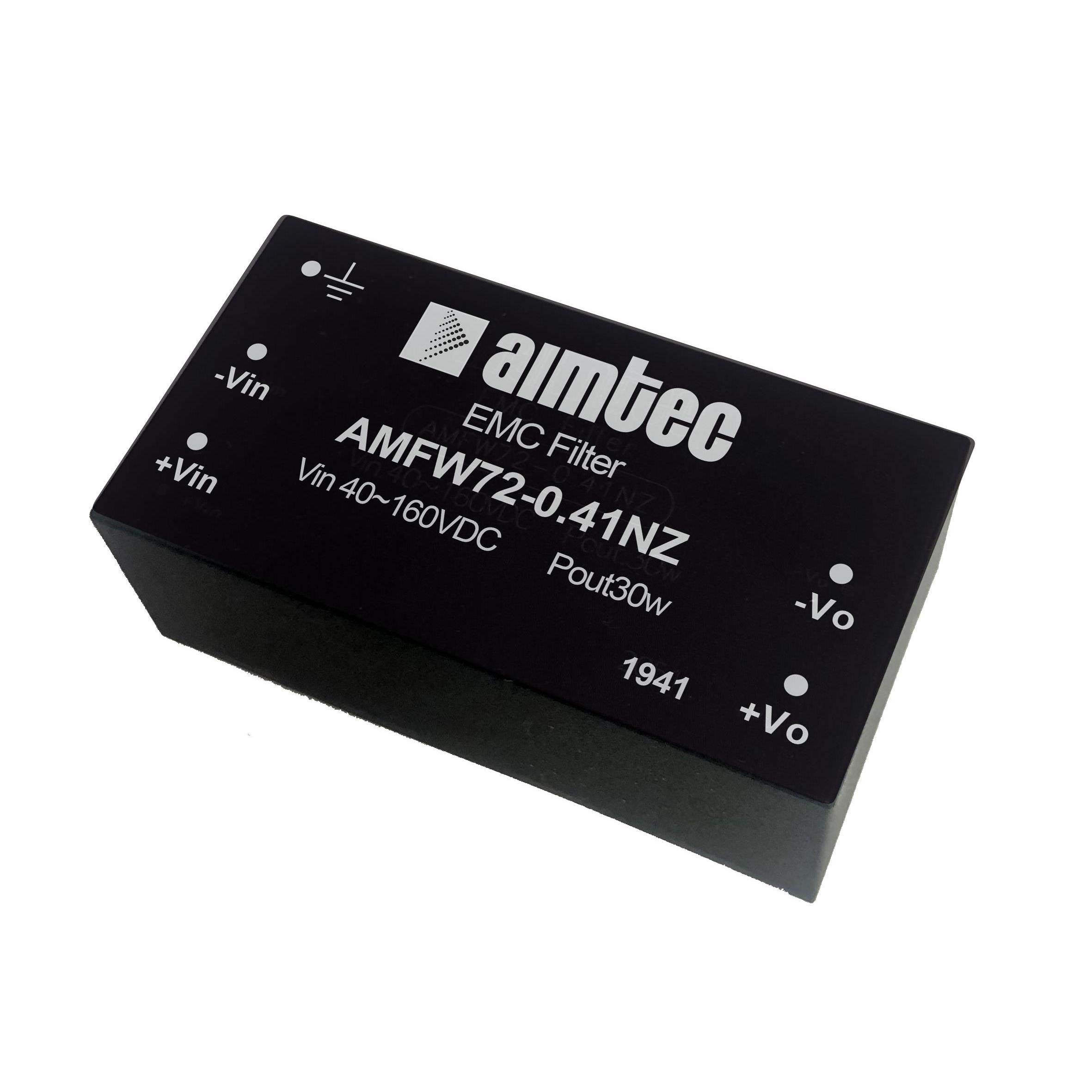

The AMFW72-0.41NZ-STD is a single-phase EMI filter manufactured by Aimtec, designed for industrial power supply applications. It operates within a voltage range of up to 160V and supports frequency bands from 5Hz to 150Hz. The component features two lines and is rated for an operating temperature range of -40°C to +85°C. This chassis-mount common mode choke is RoHS compliant and classified under ECCN EAR99.
Feature Summary
- Provides electromagnetic interference suppression for single-phase power lines
- Designed for robust industrial environment operation with wide temperature tolerance
- Supports chassis mounting for secure installation in converter systems
Applications
- Power supply converters
- Industrial electronic equipment
- Electromagnetic compatibility filtering
Procurement Notes
Verify the specific part number suffix against official Aimtec documentation to ensure correct configuration. Confirm that the required voltage and current ratings match the system design. Check for RoHS compliance status if environmental regulations apply. Ensure the chassis mount style fits the mechanical enclosure constraints. Validate the operating temperature range against the intended application environment.
Selection Notes
Select this component when single-phase EMI filtering is required for power supply inputs. Consider the chassis mount form factor for fixed installations. Evaluate the voltage rating of 160V against the maximum line voltage. Assess the need for industrial-grade temperature performance ranging from -40°C to +85°C. Verify compatibility with the target frequency spectrum for noise reduction.
Part Context
This component belongs to the AMFW72 series of common mode chokes from Aimtec. It serves as a power line filter to reduce conducted emissions. The series includes variants with different impedance values and mounting styles. It is categorized as a passive component used for signal integrity and regulatory compliance in power electronics.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult Aimtec technical support or authorized distributors for verified cross-references. Ensure any replacement matches the electrical specifications and mechanical dimensions.
