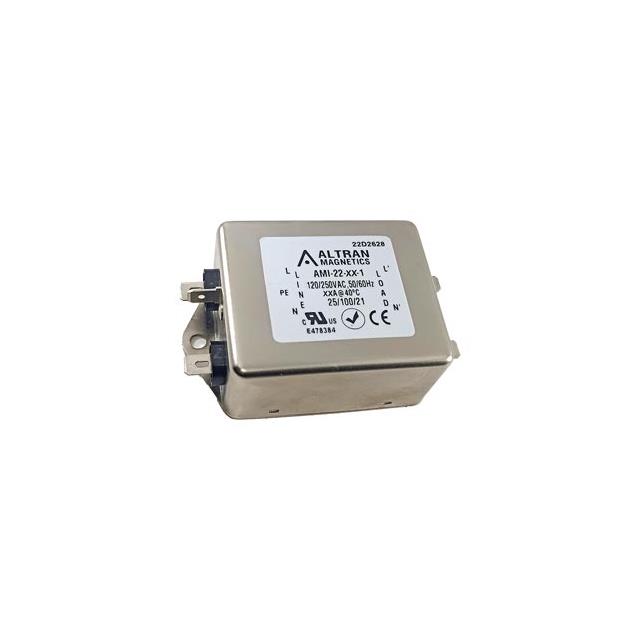

AMI-22-1-1

$13.15

Description：LINE FILTER 250VAC 1A CHASS MNT
Series：AMI-22
Mfr：Altran Magnetics, LLC
Package：Box

SKU:ca9dfbdca984 Category: Power Line Filter Modules Brand: Altran Magnetics, LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 1A CHASS MNT
Series：AMI-22
Mfr：Altran Magnetics, LLC
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：1:00 AM
Frequency - Operating：DC ~ 400Hz
Applications：General Purpose
Approval Agency：CE, cURus
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：12mH

Download product information

AMI-22-1-1

Overview

The AMI-22-1-1 is a single-phase EMC/EMI power line filter module manufactured by Altran Magnetics, LLC. Designed for chassis mounting, this component supports a current rating of 1 A and operates within a voltage range of 250 V DC to 400 Hz. It features quick connect terminals for integration. The unit utilizes a single-stage filtering configuration with an inductance value of 12 mH. Operating temperatures range from -25°C to 100°C.

Feature Summary

Provides single-stage EMI/EMC noise suppression for single-phase power lines
Utilizes quick connect terminal style for simplified circuit integration
Engineered for direct chassis mounting applications

Applications

Single-phase power line filtering
Chassis-mounted electronic equipment protection
EMI/EMC compliance modules

Procurement Notes

Verify the specific datasheet revision (e.g., Rev6) against your design requirements. Confirm that the 1 A current rating and 12 mH inductance align with your system's electrical load and noise profile. Ensure chassis mounting provisions and quick connect terminal compatibility are validated before finalizing procurement decisions.

Selection Notes

Select this model when a single-phase, chassis-mountable filter with 1 A capacity is required. The 12 mH inductance provides specific attenuation characteristics suitable for general EMI suppression. Verify that the operating temperature range of -25°C to 100°C meets environmental conditions. Ensure physical dimensions and terminal types match the enclosure design.

Part Context

This component belongs to the AMI-22 series of power line filter modules from Altran Magnetics, LLC. The series offers various configurations for single-phase applications. Altran Magnetics specializes in EMI filter technologies, providing standardized solutions for OEMs and industrial users requiring UL recognition and robust noise suppression capabilities.

Replacement Considerations

Cross-reference with other AMI-22 series variants if different current ratings or inductance values are needed. Verify pinout and terminal style compatibility when substituting with similar chassis-mount filters from other manufacturers.
