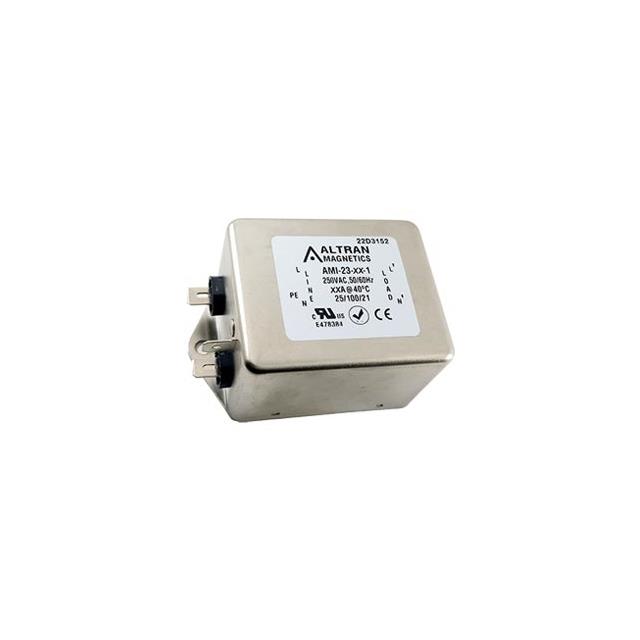

AMI-23-20-1

$23.01

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：AMI-23
Mfr：Altran Magnetics, LLC
Package：Box

SKU:f9803ff24d04 Category: Power Line Filter Modules Brand: Altran Magnetics, LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AMI-23-20-1 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists Altran Magnetics, LLC. Its product description is LINE FILTER 250VAC 20A CHASS MNT. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for AMI-23-20-1

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：AMI-23
Mfr：Altran Magnetics, LLC
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：20 A
Frequency - Operating：DC ~ 400Hz
Applications：General Purpose
Approval Agency：CE, cURus
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：-
Inductance：4mH

Power Line Filter Modules datasheet and documents for AMI-23-20-1

AMI-23-20-1

Power Line Filter Modules Overview

The AMI-23-20-1 is a single-phase EMC/EMI line filter manufactured by Altran Magnetics, LLC. It features a 20 A current rating and operates with voltage ratings of 250 VAC or DC ~ 400 Hz. The device utilizes a single-stage filtering architecture designed to suppress electromagnetic interference in power lines. It supports chassis mounting for secure installation within equipment enclosures. The unit complies with UL recognition standards within the United States marketplace, ensuring adherence to specific safety regulations for electrical components.

Power Line Filter Modules Feature Summary

Single-stage EMI/EMC filtering architecture
Chassis mount installation style
UL recognized component status

Power Line Filter Modules Applications

Power line noise suppression
Industrial equipment EMC compliance
OEM power entry modules

Power Line Filter Modules Procurement Notes

Verify the specific datasheet for detailed attenuation curves and connection diagrams. Confirm that the 250V AC/DC rating aligns with the target circuit requirements. Ensure chassis mounting provisions match the enclosure design. Check for any regional distribution restrictions or specific handling instructions provided by the manufacturer for this filter model.

Power Line Filter Modules Selection Notes

Select this component when a single-phase solution is required for currents up to 20 A. The 250V rating suits standard low-voltage applications. Verify the frequency range compatibility with the 400 Hz specification if used in aerospace or specialized industrial contexts. Ensure the chassis mount form factor fits the available space in the target assembly.

Power Line Filter Modules Part Context

This part belongs to the product portfolio of Altran Magnetics, LLC, a provider of EMI filter technologies. The company offers various power line filters, power entry modules, and three-phase filters. These products are designed for OEMs and industrial users requiring certified electromagnetic interference solutions.
