AMI-26-1-3

Power Line Filter Modules Overview

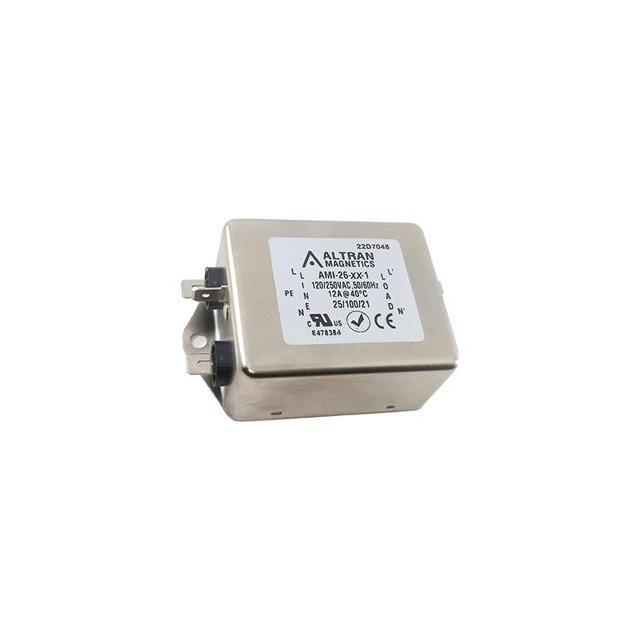

The AMI-26-1-3 is a single-phase EMC/EMI line filter module manufactured by Altran Magnetics, LLC. It features a two-stage filtering design intended for power line noise suppression. The component supports an operating voltage range of 250V AC and DC up to 400Hz. It is rated for a current capacity of 1 A and utilizes quick connect terminals for circuit integration. The unit is designed for chassis mounting applications.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Quick connect terminal interface for simplified assembly
• Chassis mount construction for secure installation

Power Line Filter Modules Applications

• Single-phase power supply input filtering
• EMC compliance in electronic equipment
• EMI suppression in industrial control systems

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision (AMI26-XX_AMI_Rev6) against your design requirements. Confirm that the 1 A current rating and 250 V voltage limits align with your system's operational parameters. Ensure chassis mounting provisions are available in your enclosure design to accommodate the physical form factor of this filter module.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, two-stage EMI filter is required for low-current applications up to 1 A. The quick connect feature suits designs prioritizing rapid assembly. Verify compatibility with 400 Hz operation if used in aerospace or specialized industrial environments rather than standard 50/60 Hz mains.

Power Line Filter Modules Part Context

This part belongs to the AMI-26 series of power line filter modules from Altran Magnetics, LLC. The series offers various configurations for different current and voltage ratings. The AMI-26-1-3 specifically denotes the 1 A variant within this chassis-mountable family of electromagnetic interference suppression components.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers for the AMI-26-1-3 were not identified in the provided source material. Cross-referencing with other manufacturers requires independent verification of electrical specifications and mechanical dimensions.
