AMI-27-12-1

Power Line Filter Modules Overview

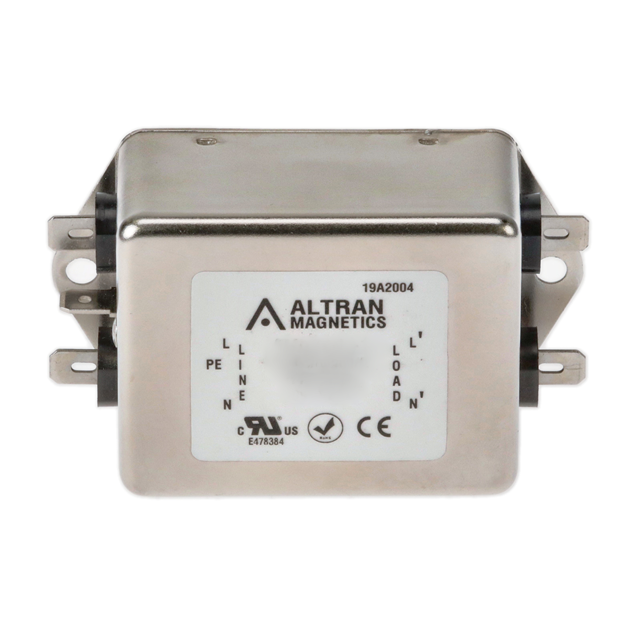

The AMI-27-12-1 is a single-phase EMC/EMI line filter manufactured by Altran Magnetics, LLC. It supports a current rating of 12 A and operates within an AC voltage range of 110 V to 250 V. The device functions at frequencies from DC to 400 Hz and utilizes a two-stage filtering configuration. It features quick connect termination style and is designed for chassis mount installation.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Quick connect termination style for simplified wiring
• Chassis mount design for secure mechanical integration

Power Line Filter Modules Applications

• General purpose power line filtering
• EMC/EMI noise reduction in AC power systems
• Industrial equipment power supply protection

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Altran Magnetics or authorized distributors before procurement. Confirm that the quick connect terminal specifications match the intended wiring harness requirements. Ensure the chassis mounting dimensions align with the target enclosure design constraints.

Power Line Filter Modules Selection Notes

Select this component when a single-phase filter rated for 12 A is required for applications operating up to 250 VAC. The two-stage design is suitable for environments requiring significant EMI attenuation. Verify that the DC to 400 Hz frequency range meets the system's operational spectrum needs.

Power Line Filter Modules Part Context

This part belongs to the AMI series of power line filters produced by Altran Magnetics, LLC. These components are engineered for general-purpose electromagnetic interference suppression in AC power lines. The series provides reliable noise filtration for various industrial and commercial electronic applications.

Power Line Filter Modules Replacement Considerations

The SCHURTER Inc. part number 5500.2612.04 is listed as a potential substitute. Evaluate electrical ratings and physical dimensions to ensure compatibility before substitution.
