AMI-28-1-1

Power Line Filter Modules Overview

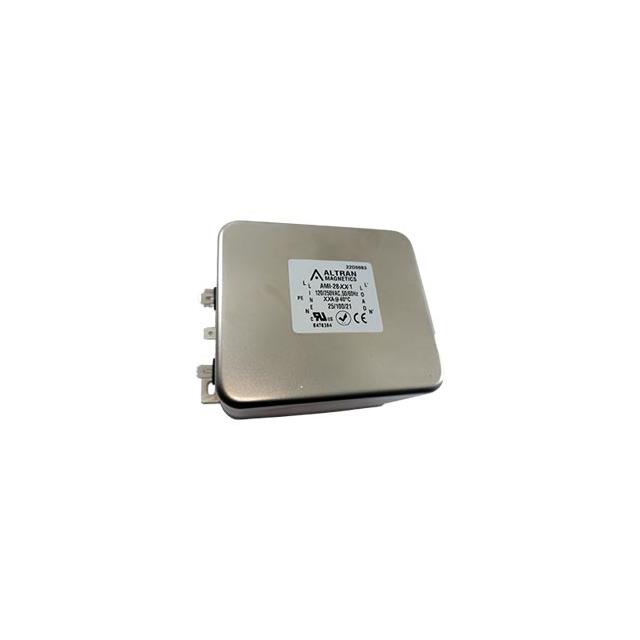

The AMI-28-1-1 is a single-phase EMC/EMI line filter manufactured by Altran Magnetics, LLC. It is designed for chassis mounting and supports an AC voltage rating of 250VAC with a current capacity of 1A. The component operates within a frequency range of DC to 400Hz and features a two-stage configuration. Termination is achieved via quick connect terminals. The unit functions reliably in temperatures ranging from -25°C to 100°C.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design for secure installation
• Quick connect termination style for simplified wiring

Power Line Filter Modules Applications

• General purpose electronic equipment power input protection
• Industrial control systems requiring EMI mitigation
• Medical device power supply filtering

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version and certification status (such as UL or CSA) directly with the manufacturer or authorized distributor before finalizing procurement. Confirm that the quick connect terminal dimensions match the mating connector specifications in the target assembly to ensure mechanical compatibility and reliable electrical contact.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, 1A rated filter with two-stage attenuation is required for chassis-mounted applications. Ensure the operating environment temperature falls within the specified -25°C to 100°C range. Verify that the input voltage does not exceed 250VAC and that the system frequency aligns with the DC to 400Hz operational window.

Power Line Filter Modules Part Context

This part belongs to the AMI-28 series of power line filter modules produced by Altran Magnetics, LLC. The series provides various current ratings and configurations for EMC/EMI suppression. The AMI-28-1-1 specifically addresses low-current applications requiring robust chassis mounting and quick-connect accessibility for efficient assembly integration.

Power Line Filter Modules Replacement Considerations

The TE Connectivity Schaffner FN2080-1-07 is listed as a similar alternative. Verify functional equivalence regarding current rating, voltage, and stage configuration before substitution.
