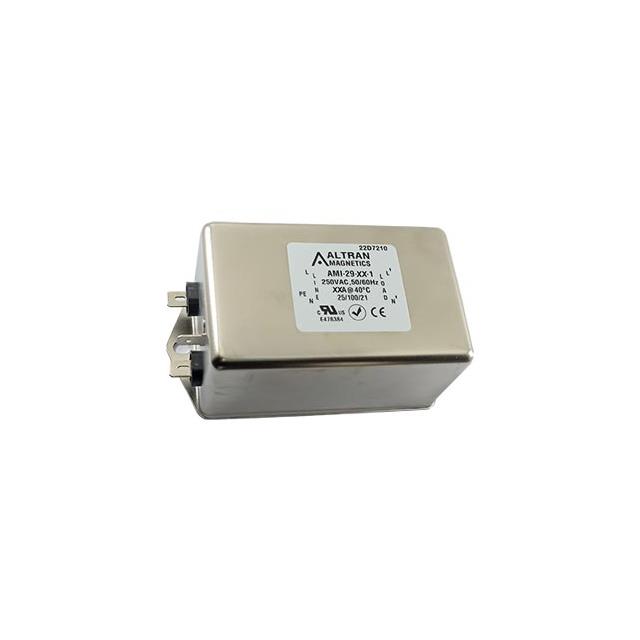

AMI-29-10-1 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists Altran Magnetics, LLC. Its product description is LINE FILTER 250VAC 10A CHASS MNT. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for AMI-29-10-1
- Description：LINE FILTER 250VAC 10A CHASS MNT
- Series：AMI-29
- Mfr：Altran Magnetics, LLC
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：10:00 AM
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CE, cURus
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：16mH
Power Line Filter Modules datasheet and documents for AMI-29-10-1
Power Line Filter Modules Overview
The AMI-29-10-1 is a single-phase EMC/EMI line filter manufactured by Altran Magnetics, LLC. It features a two-stage filtering design rated for 10 A current and operates within a voltage range of 110/250 VAC or DC up to 400 Hz. The unit utilizes quick connect terminals for circuit integration and is designed for chassis mounting. This component serves as a power line filter module intended to suppress electromagnetic interference in electrical systems.
Power Line Filter Modules Feature Summary
- Two-stage filtering architecture for enhanced noise suppression
- Quick connect terminal interface for simplified installation
- Chassis mount configuration for secure physical placement
Power Line Filter Modules Applications
- Electromagnetic compatibility (EMC) filtering in power lines
- EMI suppression for AC and DC circuits up to 400 Hz
- Chassis-mounted noise reduction in electronic equipment
Power Line Filter Modules Procurement Notes
Verify the specific voltage rating requirements against the 110/250 VAC specification before procurement. Confirm that the operating frequency does not exceed 400 Hz. Ensure the chassis mounting style and quick connect terminal type match the existing system layout. Check RoHS compliance details if required by project specifications.
Power Line Filter Modules Selection Notes
Select this component when a two-stage EMI filter is required for single-phase applications. The 10 A rating must align with the maximum load current. Verify that the quick connect termination method is compatible with the PCB or wiring harness. Consider the chassis mount form factor for enclosure integration.
Power Line Filter Modules Part Context
This part belongs to the power line filter modules category from Altran Magnetics, LLC. It is distinct from the manufacturer's electromechanical contactors and relays. The product is categorized under filters and is designed for general-purpose electromagnetic interference mitigation in low-frequency AC and DC environments.
