AMI-B11AW1-13-3-B

Power Line Filter Modules Overview

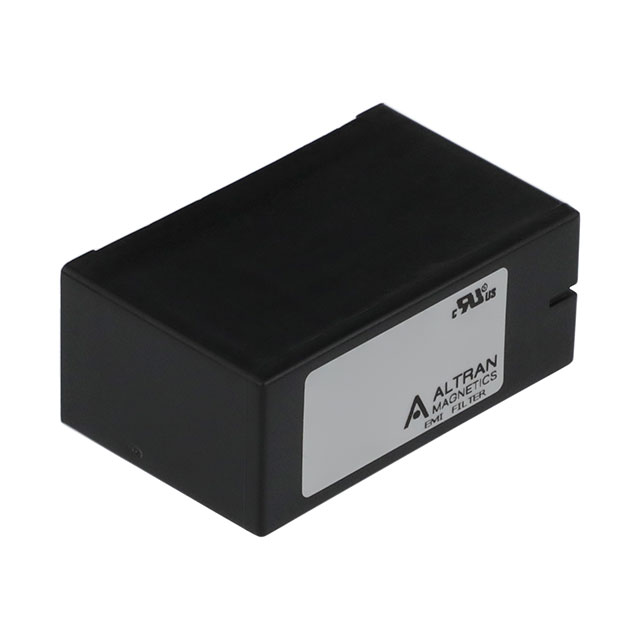

The AMI-B11AW1-13-3-B is a single-stage power line EMI filter manufactured by Altran Magnetics, LLC. It supports a current rating of 3 A and operates at voltages up to 250 VAC. Designed for chassis mounting, this component utilizes PC pin termination for circuit board integration. The filter functions within a temperature range of -10°C to +40°C and is certified for general industrial applications.

Power Line Filter Modules Feature Summary

• Single-phase electromagnetic interference suppression
• Chassis mount mechanical configuration
• PC pin electrical termination

Power Line Filter Modules Applications

• General industrial equipment filtering
• Power line noise reduction
• Electromagnetic compatibility enhancement

Power Line Filter Modules Procurement Notes

Verify the specific suffix '1' against the datasheet to confirm it denotes the 3A variant, as other suffixes in the series indicate different current ratings like 6A or 13A. Confirm RoHS compliance status directly with the manufacturer documentation before finalizing procurement specifications.

Power Line Filter Modules Selection Notes

Select this model when a 3A rated single-stage filter is required for chassis-mounted installations. Ensure the operating environment stays within the specified -10°C to +40°C range. Verify that PC pin termination matches the target PCB layout requirements compared to quick-connect alternatives.

Power Line Filter Modules Part Context

This component belongs to the AMI-B11AW series of power line filters from Altran Magnetics. The series includes variants with different current ratings such as 1A, 6A, and 13A, distinguished by their part number suffixes. All units share similar physical dimensions and mounting styles but vary in electrical performance characteristics.

Power Line Filter Modules Replacement Considerations

Direct substitutes include AMI-B11AW2-13-3-B (6A) and AMI-B11AW3-13-3-B (13A) if higher current capacity is acceptable. Lower current options like AMI-B11E-1-6-D-1 exist but differ in form factor and mounting style.
