AMI-M11A-1-20-D

Power Line Filter Modules Overview

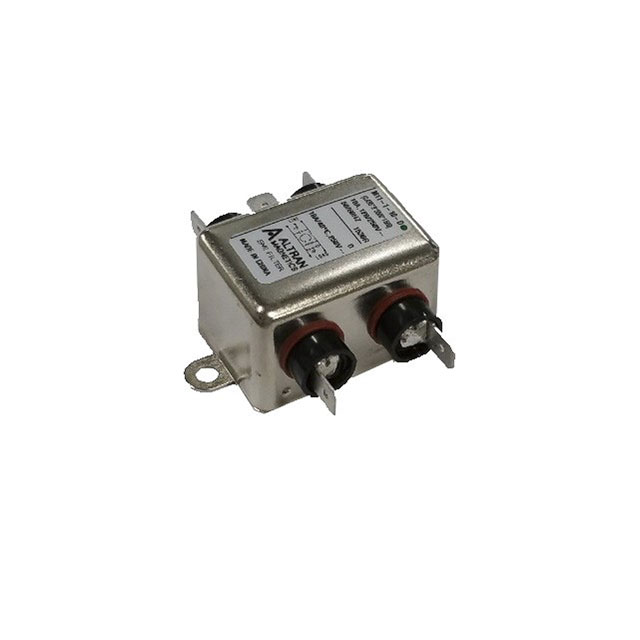

The AMI-M11A-1-20-D is a single-phase power line filter module manufactured by Altran Magnetics, LLC. Designed for chassis mounting, this component supports a maximum current of 20 A and operates at voltage ratings up to 250 VAC. It functions within a frequency range of 50/60 Hz and utilizes quick connect terminals for installation. The unit provides electromagnetic interference suppression in a compact form factor suitable for industrial applications.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC filtering capability
• Chassis mount physical configuration
• Quick connect terminal interface

Power Line Filter Modules Applications

• High-power motor control cabinets
• Industrial equipment requiring stable processing performance
• HMI and display projects with external peripherals

Power Line Filter Modules Procurement Notes

Verify the specific part number against manufacturer documentation to ensure compatibility with system requirements. Confirm that the 20 A current rating and 250 VAC voltage specifications align with the intended application's electrical parameters before procurement.

Power Line Filter Modules Selection Notes

Select this model when a single-phase filter with high current capacity is required for chassis-mounted installations. Ensure the application environment accommodates the physical dimensions and thermal characteristics associated with 20 A operation.

Power Line Filter Modules Part Context

This component belongs to the AMI series of power line filter modules from Altran Magnetics. The series offers various configurations for different current and voltage needs, providing standardized solutions for electromagnetic interference mitigation in electronic systems.

Power Line Filter Modules Replacement Considerations

Consult official substitution lists for verified alternatives. Generic cross-references may not match the specific electrical or mechanical constraints of this chassis-mount module.
