AMI-M11A-3-1-B

Power Line Filter Modules Overview

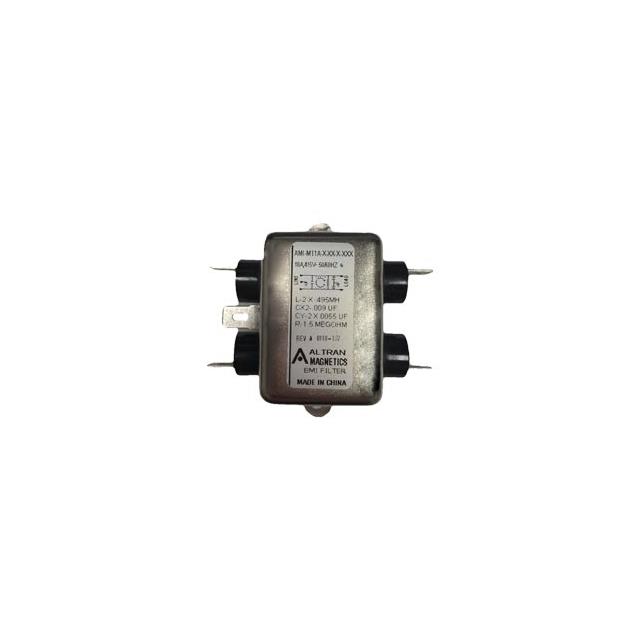

The AMI-M11A-3-1-B is a single-phase EMC/EMI line filter module manufactured by Altran Magnetics, LLC. It is rated for 1 A current and 250VAC voltage at 50/60Hz frequencies. The unit features a single-stage design with wire leads for connection. Physical dimensions include a length of 24.4 mm and a depth of 46.2 mm. It operates within a temperature range of -10°C to 40°C and utilizes four terminals.

Power Line Filter Modules Feature Summary

• Single-phase EMC/EMI line filtering capability
• Single-stage attenuation design
• Wire lead termination style

Power Line Filter Modules Applications

• General purpose power line filtering
• Electronic equipment noise suppression

Power Line Filter Modules Procurement Notes

Verify the specific datasheet from Altran Magnetics or authorized distributors to confirm exact pinout configurations and compliance certifications. Ensure the operating environment remains within the specified -10°C to 40°C range. Confirm that the 1 A rating meets the circuit requirements before integration.

Power Line Filter Modules Selection Notes

Select this component for applications requiring single-phase EMI suppression in compact spaces. The wire lead configuration simplifies integration into existing wiring harnesses. Verify that the 250VAC rating aligns with the local mains voltage standards and that the 1 A current capacity suffices for the load.

Power Line Filter Modules Part Context

This part belongs to the AMI series of power line filters from Altran Magnetics. These modules are designed for general-purpose electromagnetic interference reduction in AC power lines. The series typically offers various current ratings and mounting options to suit different electronic device constraints.

Power Line Filter Modules Replacement Considerations

Cross-reference with similar single-phase 1 A 250VAC filters from other manufacturers if supply issues arise. Ensure replacement parts match the physical dimensions and terminal type to maintain compatibility with the host assembly.
