AMI-M11D-1-6-B-2

Power Line Filter Modules Overview

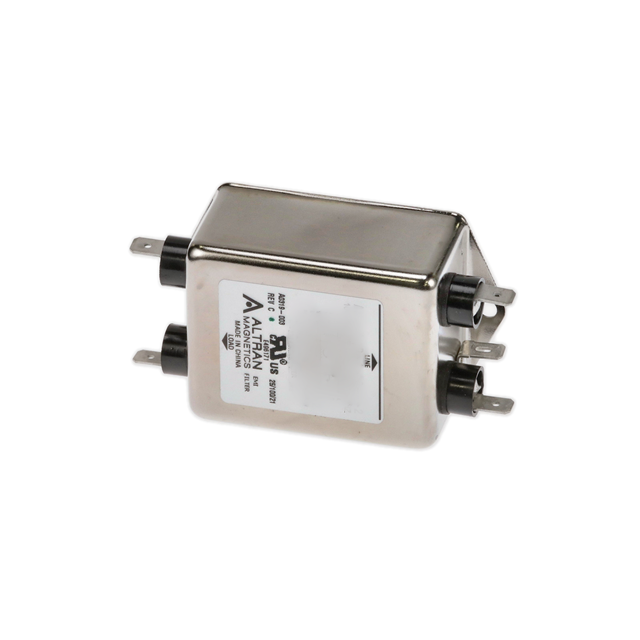

The AMI-M11D-1-6-B-2 is a single-stage EMI line filter manufactured by Altran Magnetics, LLC. It is designed for single-phase power lines with a rated current of 6 A and a voltage rating of 250 VAC at 50/60 Hz. The component utilizes quick connect terminals for circuit integration. This filter addresses electromagnetic interference in low-power AC applications.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture for noise suppression
• Quick connect terminal interface for simplified wiring
• Rated for single-phase AC power line protection

Power Line Filter Modules Applications

• Single-phase AC power line filtering
• Electromagnetic interference suppression in low-current circuits

Power Line Filter Modules Procurement Notes

Verify the specific part number against official Altran Magnetics documentation to confirm electrical ratings and terminal configuration. Ensure compatibility with the target system's voltage and current requirements before procurement.

Power Line Filter Modules Selection Notes

Select this component for applications requiring single-stage EMI filtering on single-phase lines up to 6 A. Confirm that the quick connect termination style matches the assembly design and that the 250 VAC rating meets the operational voltage constraints.

Power Line Filter Modules Part Context

This component belongs to the AMI series of power line filters from Altran Magnetics. The series includes various configurations for different current and voltage ratings, utilizing single-stage designs for standard EMI mitigation needs in electronic equipment.
