AMI-M11D-6-20-B-1

Power Line Filter Modules Overview

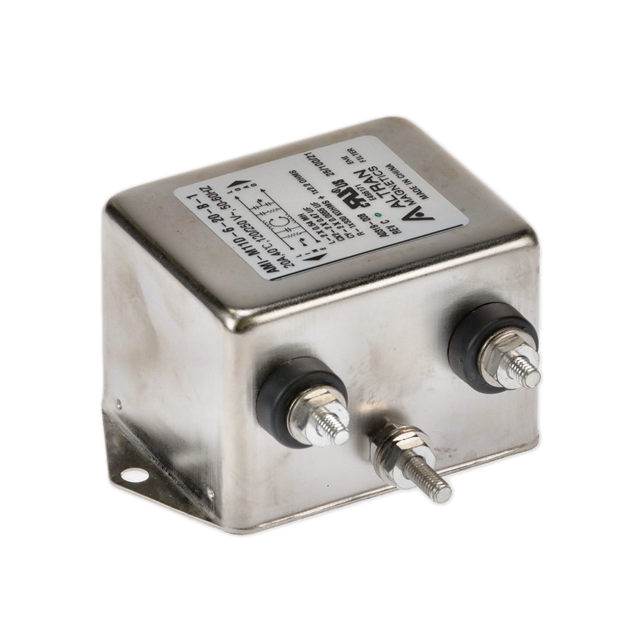

The AMI-M11D-6-20-B-1 is a single-phase power line EMI filter manufactured by Altran Magnetics, LLC. It features a 250VAC voltage rating and supports a current capacity of 20A. The unit utilizes chassis mounting for installation and employs quick connect termination styles. Designed for general applications, it operates within a temperature range of -10°C to +40°C.

Power Line Filter Modules Feature Summary

• Single-phase power line filtering configuration
• Chassis mount installation style
• Quick connect termination interface

Power Line Filter Modules Applications

• General electronic equipment noise suppression
• Power supply input filtering
• Industrial control system EMC mitigation

Power Line Filter Modules Procurement Notes

Verify the specific suffix codes against official Altran Magnetics documentation to ensure correct electrical ratings and mechanical dimensions. Confirm RoHS compliance status and manufacturing origin prior to ordering. Cross-reference datasheet parameters with system requirements to validate thermal and current handling capabilities.

Power Line Filter Modules Selection Notes

Select this component when a 20A rated single-phase filter is required for chassis-mounted applications. Ensure the operating environment stays within the specified -10°C to +40°C range. Verify that the quick connect terminals match the available wiring harness or PCB footprint in the target design.

Power Line Filter Modules Part Context

This part belongs to the AMI series of power line filters from Altran Magnetics. It serves as an electromagnetic interference suppression device for AC power inputs. The series provides standardized solutions for common mode noise reduction in various industrial and commercial electronic systems requiring robust filtering performance.

Power Line Filter Modules Replacement Considerations

AMI-M11E-1-6-D-1
