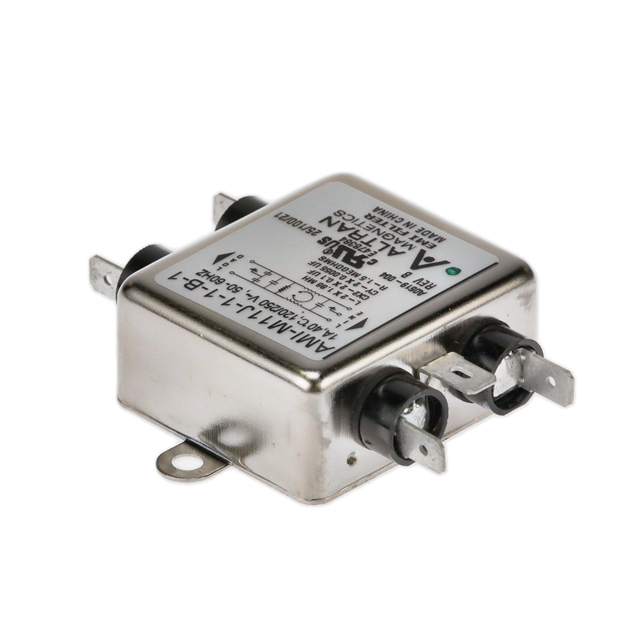

AMI-M11J-1-1-B-1

$11.02

Description：LINE FILTER 250VAC 1A CHASS MNT
Series：AMI-M11J
Mfr：Altran Magnetics, LLC
Package：Box

SKU:5492c00782d8 Category: Power Line Filter Modules Brand: Altran Magnetics, LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AMI-M11J-1-1-B-1 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists Altran Magnetics, LLC. Its product description is LINE FILTER 250VAC 1A CHASS MNT. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for AMI-M11J-1-1-B-1

Description：LINE FILTER 250VAC 1A CHASS MNT
Series：AMI-M11J
Mfr：Altran Magnetics, LLC
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：1:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：-
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：1.86mH

Power Line Filter Modules datasheet and documents for AMI-M11J-1-1-B-1

AMI-M11J-1-1-B-1

Power Line Filter Modules Overview

The AMI-M11J-1-1-B-1 is a single-stage EMC/EMI power line filter manufactured by Altran Magnetics, LLC. It supports a continuous current of 1 A and operates at AC voltages up to 250 VAC at 50/60 Hz. The device utilizes quick connect terminals for circuit integration. Designed for general-purpose applications, it provides noise suppression in single-phase power lines within the specified voltage and frequency ranges.

Power Line Filter Modules Feature Summary

Single-stage EMI filtering architecture
Quick connect terminal interface
Rated for 1 A continuous current

Power Line Filter Modules Applications

Single-phase power line noise suppression
General-purpose EMC compliance filtering
Electronic equipment power input stages

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the AMI-M11J-1-1-B-1 to confirm exact dimensional tolerances and terminal pitch specifications. Ensure the operating environment remains within the rated 250 VAC limit. Cross-reference the manufacturer's official documentation for any updates regarding material composition or RoHS compliance status prior to final design approval.

Power Line Filter Modules Selection Notes

Select this component when a single-stage filter is sufficient for low-current applications requiring 1 A capacity. It is suitable for systems operating at standard 50/60 Hz frequencies. Compare against higher-current variants if load requirements exceed 1 A. Verify that quick connect mounting aligns with the PCB or harness design constraints.

Power Line Filter Modules Part Context

This part belongs to the AMI series of power line filters from Altran Magnetics, LLC. The series includes variants with different current ratings such as 3 A and 5 A models. These filters are designed for chassis or panel mounting in electronic assemblies requiring basic electromagnetic interference reduction.
