AMI-M11J-1-20-B-2

Power Line Filter Modules Overview

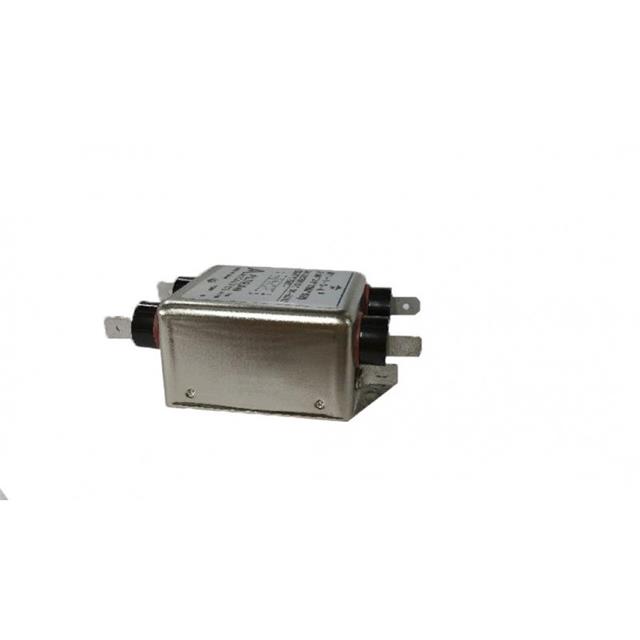

The AMI-M11J-1-20-B-2 is a single-phase EMC/EMI line filter module manufactured by Altran Magnetics, LLC. It provides power line filtering with a rated current of 20 A and operates at 250 VAC within a 50/60 Hz frequency range. The unit utilizes a single-stage design and features quick-connect terminals for circuit integration. Designed for chassis or panel mounting, it ensures compliance with electromagnetic interference standards in industrial applications.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC filtering architecture
• Quick-connect terminal interface
• Chassis or panel mount capability

Power Line Filter Modules Applications

• Industrial equipment power input stages
• Electromagnetic compatibility (EMC) mitigation
• Power supply noise suppression

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version to confirm lead times and availability status, as distribution channels may vary. Ensure the ordering suffix matches the required terminal configuration and mounting style. Cross-reference the manufacturer's part number with authorized distributor catalogs to prevent counterfeit components. Confirm RoHS compliance documentation is available for regulatory adherence.

Power Line Filter Modules Selection Notes

Select this component when a 20 A continuous current rating and 250 VAC operation are required for single-phase AC lines. The quick-connect interface suits automated assembly processes. Verify that the physical dimensions fit the designated chassis space. Ensure the filtering characteristics meet the specific EMI/EMC standards applicable to the end product.

Power Line Filter Modules Part Context

This model belongs to the AMI series of power line filter modules from Altran Magnetics, LLC. These filters are engineered for industrial environments requiring robust noise attenuation. The series typically offers various current ratings and terminal options to accommodate diverse power distribution needs in electronic systems.

Power Line Filter Modules Replacement Considerations

Consult the official Altran Magnetics cross-reference guide for verified substitutes. Ensure replacement units match the 20 A rating, 250 VAC voltage, and quick-connect terminal type. Verify identical mounting dimensions and filtering specifications before substitution.
