AMI-M11J-3-10-B-1

Power Line Filter Modules Overview

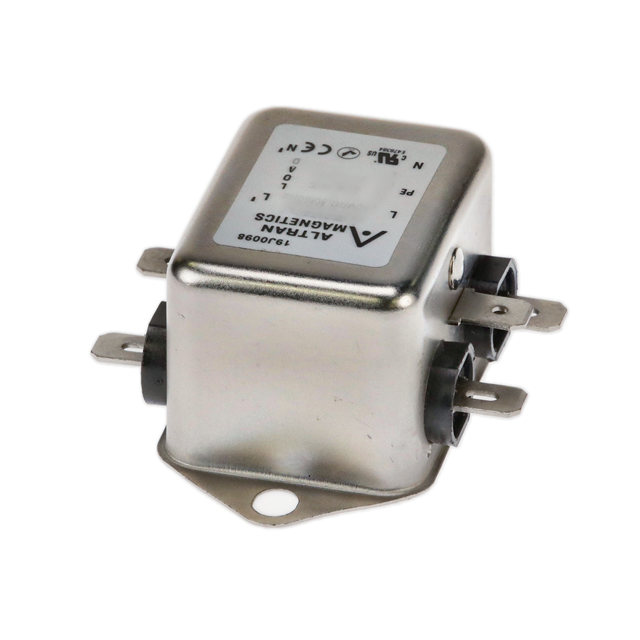

The AMI-M11J-3-10-B-1 is a single-stage power line EMI filter manufactured by Altran Magnetics, LLC. It is designed for AC mains applications with a rated current of 10 A and a maximum voltage of 250 VAC at 50/60 Hz. The unit utilizes wire leads for connection and operates within an ambient temperature range of -10 °C to 40 °C.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference suppression
• Direct wire lead termination

Power Line Filter Modules Applications

• AC power line filtering
• Electromagnetic compatibility enhancement in low-power circuits

Power Line Filter Modules Procurement Notes

Verify the specific manufacturer datasheet for detailed electrical characteristics and compliance certifications before integration. Confirm that the operating environment remains within the specified -10 °C to 40 °C temperature range to ensure reliable performance and longevity of the component.

Power Line Filter Modules Selection Notes

Select this component for applications requiring basic single-stage EMI attenuation on 250 VAC lines carrying up to 10 A. Ensure the system design accommodates the -10 °C to 40 °C operating temperature limits and utilizes appropriate wire gauge connections compatible with the provided leads.

Power Line Filter Modules Part Context

This part belongs to the AMI-M11J series of power line filters from Altran Magnetics. These components are engineered for general-purpose noise reduction in AC power inputs, distinguishing themselves through simple wire-lead construction suitable for direct integration into equipment power stages.

Power Line Filter Modules Replacement Considerations

Cross-reference with other single-stage 10 A EMI filters from Altran Magnetics or equivalent manufacturers, ensuring identical voltage, current, and temperature specifications are met.
