AMI-M11K-7-10-B-2

Power Line Filter Modules Overview

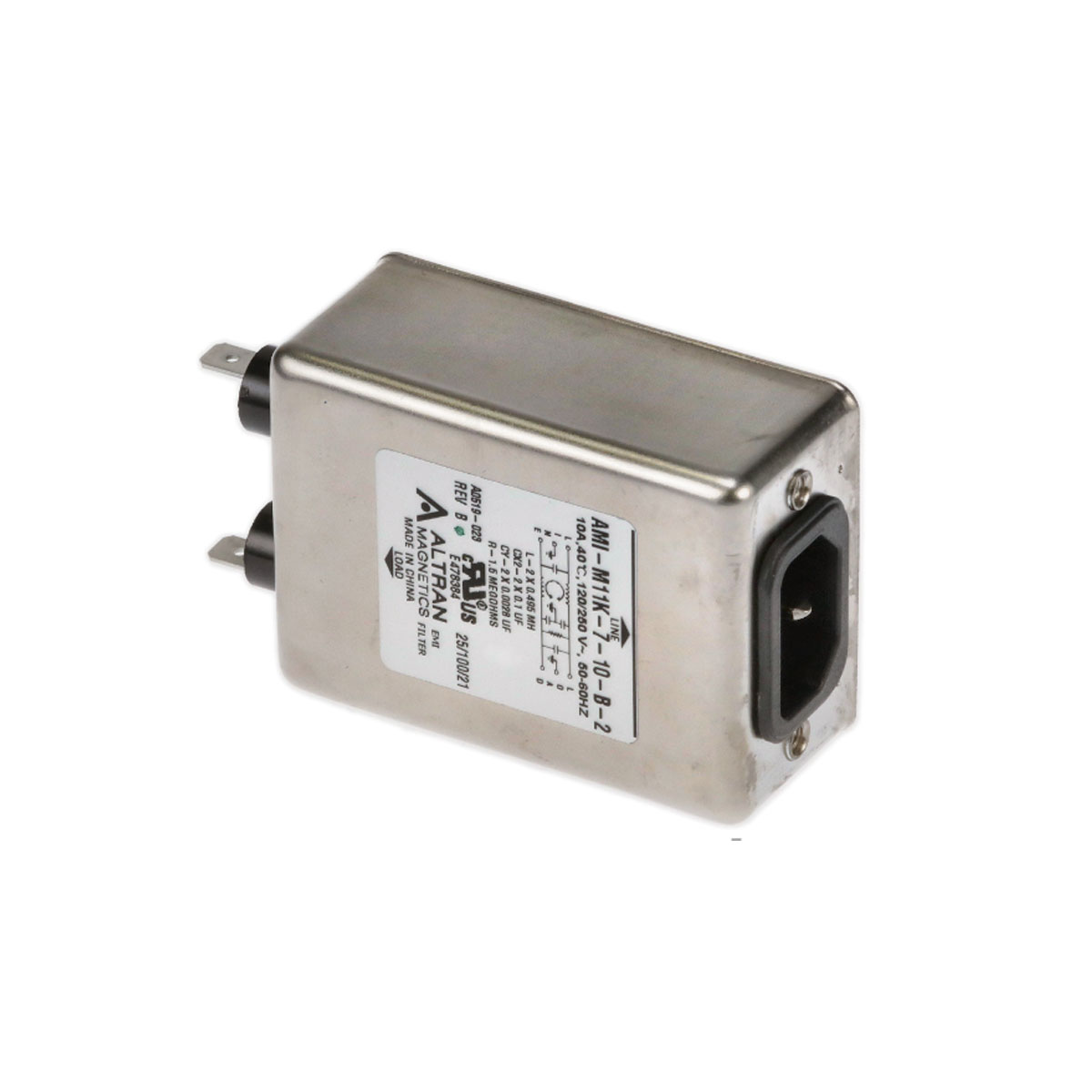

The AMI-M11K-7-10-B-2 is a single-phase EMC/EMI line filter manufactured by Altran Magnetics, LLC. It features a current rating of 10 A and operates at 250 VAC with 50/60 Hz frequency support. The unit utilizes a single-stage filtering design for noise suppression. Physical connectivity is provided via IEC 320-C14 connectors, while internal termination uses quick connect terminals. This component is designed for chassis mounting to integrate into power supply circuits requiring electromagnetic interference mitigation.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC noise filtration
• IEC 320-C14 input interface
• Quick connect output termination

Power Line Filter Modules Applications

• Power supply input filtering
• Chassis-mounted electronic equipment
• HMI and display peripheral integration

Power Line Filter Modules Procurement Notes

Verify the specific suffix configuration against the manufacturer datasheet to ensure compatibility with required voltage and current ratings. Confirm that the IEC 320-C14 connector orientation matches the system panel cutout requirements. Ensure the quick connect terminal spacing aligns with downstream wiring harness specifications before finalizing procurement orders.

Power Line Filter Modules Selection Notes

Select this model when a 10 A rated single-phase filter is required for 250 VAC systems. The IEC 320-C14 interface simplifies connection to standard power cords. Consider the chassis mount form factor for fixed installations where space efficiency is prioritized over plug-in flexibility. Validate thermal performance within the intended enclosure environment.

Power Line Filter Modules Part Context

This component belongs to the AMI series of power line filters from Altran Magnetics. The series offers various current ratings and stage configurations. The AMI-M11K variant specifically denotes a single-phase design with defined terminal types. It serves as a passive component for maintaining signal integrity in AC power distribution networks.

Power Line Filter Modules Replacement Considerations

Cross-reference part numbers such as AMI-M11K-7-5-B-1 for lower current applications. Verify that substitute models maintain identical IEC 320-C14 compatibility and quick connect terminal specifications to ensure mechanical interchangeability without redesigning the mounting bracket or wiring layout.
