AMI-M11K-7-5-B-2

Power Line Filter Modules Overview

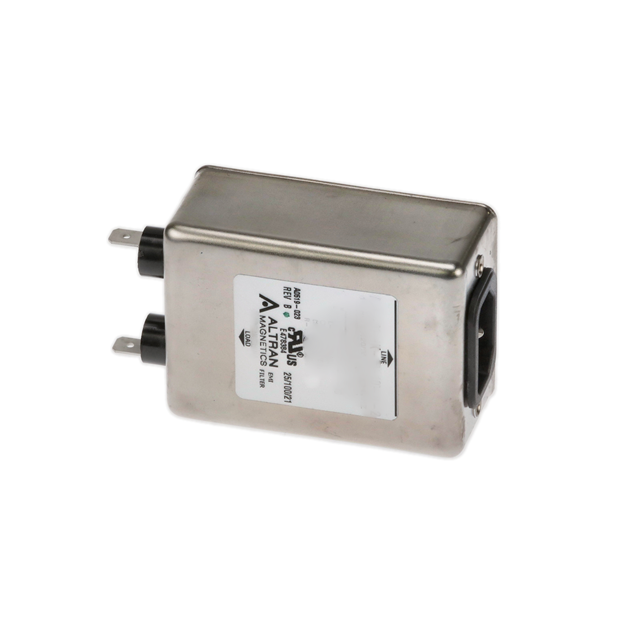

The AMI-M11K-7-5-B-2 is a single-phase EMC/EMI line filter manufactured by Altran Magnetics, LLC. It provides 5 A current handling at 250 VAC for 50/60 Hz applications. The unit features a single-stage design with IEC 320-C14 input connectors and quick-connect terminals. Rated for operation within standard environmental limits, it serves as an effective noise suppression component for power line filtering in electronic systems.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC noise attenuation
• IEC 320-C14 plug-in interface
• Quick-connect terminal configuration

Power Line Filter Modules Applications

• Power line noise suppression
• Electronic equipment input filtering
• General purpose EMI mitigation

Power Line Filter Modules Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with existing IEC 320-C14 receptacles and mounting constraints. Cross-reference datasheets for thermal performance and certification status before integration into final designs.

Power Line Filter Modules Selection Notes

Select this component for applications requiring single-stage filtering at 5 A and 250 VAC. The IEC 320-C14 interface simplifies assembly where mating connectors are already present. Evaluate space constraints regarding the filter's footprint and height relative to the enclosure design.

Power Line Filter Modules Part Context

This component belongs to the Altran Magnetics power line filter portfolio, designed for electromagnetic interference reduction. It complements other series such as the AMI-M11L and AMI-M11J models, offering standardized interfaces for consistent system integration across various industrial and commercial electronic platforms.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
