AMI-M11K-7M-10-B-2

Power Line Filter Modules Overview

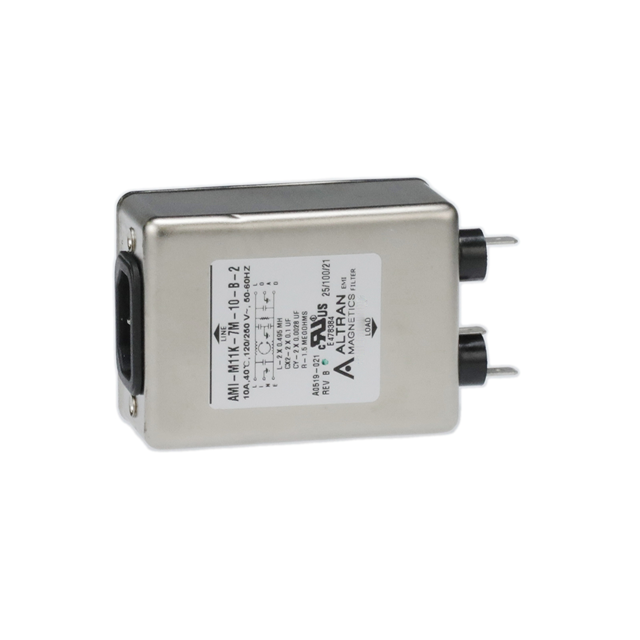

The AMI-M11K-7M-10-B-2 is a single-phase EMC/EMI line filter manufactured by Altran Magnetics, LLC. It features a current rating of 10 A and operates at voltages up to 250 VAC at 50/60 Hz. The unit utilizes a single-stage filtering design with an IEC 320-C14 input connector interface. Physical mounting is achieved via chassis mount configuration using quick connect terminals for electrical interfacing.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference suppression
• IEC 320-C14 standard input connector integration
• Chassis mount mechanical configuration

Power Line Filter Modules Applications

• Power supply input filtering
• Industrial equipment EMI reduction
• Electronic device noise suppression

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for precise attenuation curves and thermal derating information. Confirm that the IEC 320-C14 mating connector matches the system requirements. Ensure the chassis mounting holes align with the enclosure design. Check compliance documentation for regional regulatory standards applicable to the final assembly.

Power Line Filter Modules Selection Notes

Select this component when a compact, single-phase EMI filter is required for 10 A applications. The IEC 320-C14 interface simplifies integration with standard power cords. Consider the physical dimensions and chassis mounting constraints during the mechanical design phase. Verify that the operating voltage and current ratings exceed the maximum expected load conditions.

Power Line Filter Modules Part Context

This part belongs to the AMI-M11K series of power line filters from Altran Magnetics. The series offers various current ratings and terminal configurations. The M11K designation indicates a specific form factor and performance class within the manufacturer's lineup for general-purpose electromagnetic interference mitigation in AC power lines.
