AMI-M11M-6-60-B

Power Line Filter Modules Overview

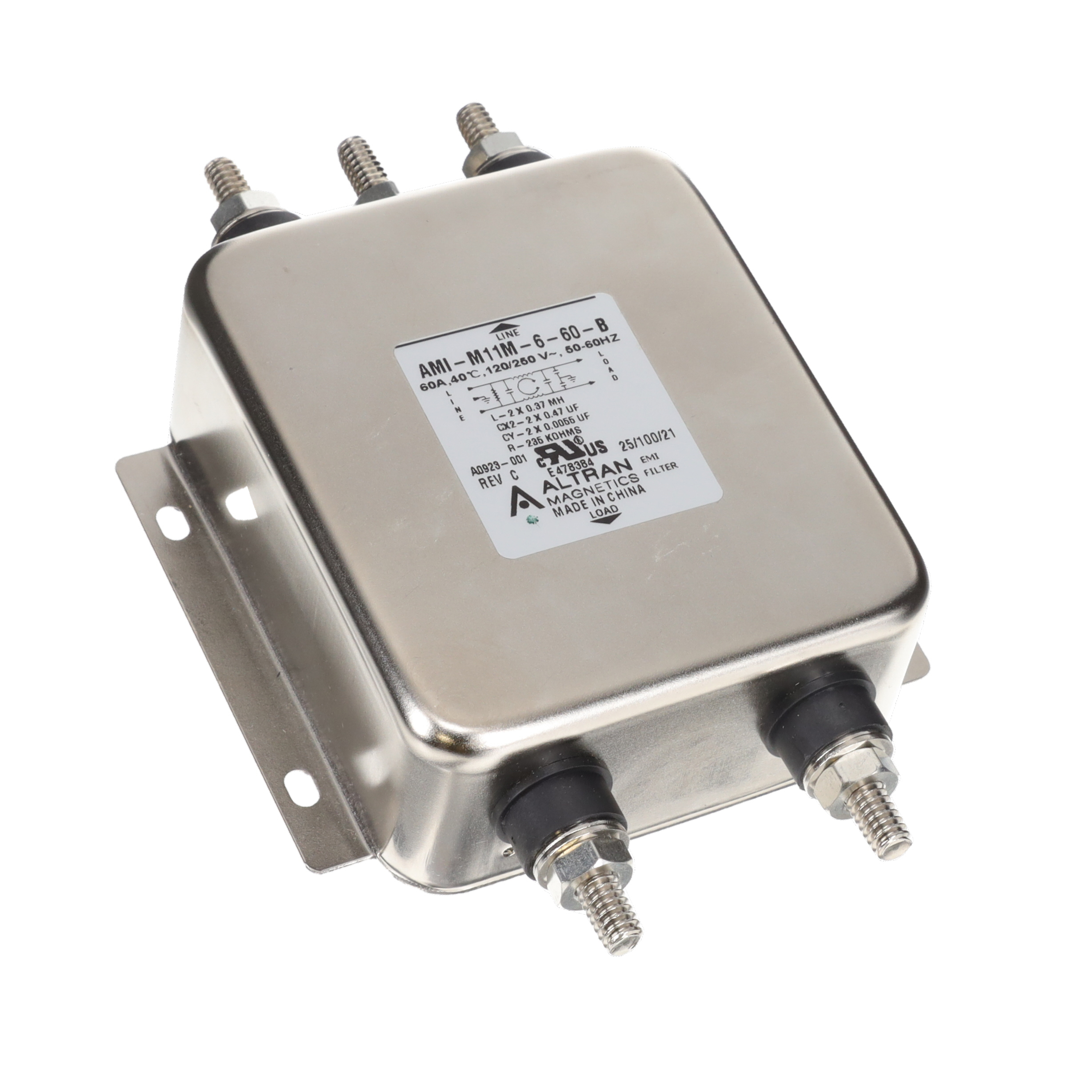

The AMI-M11M-6-60-B is a single-stage, single-phase EMC/EMI line filter module manufactured by Altran Magnetics, LLC. Designed for chassis mounting, this component supports a continuous current rating of 60 A and operates at a voltage rating of 250 VAC. It functions within a frequency range of 50/60 Hz and utilizes threaded post terminals for connection. The unit is engineered to provide effective noise suppression in power line applications while maintaining structural integrity under specified electrical loads.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture for efficient EMI/EMI noise reduction
• High-capacity 60 A current handling capability for robust power delivery
• Threaded post terminal configuration ensuring secure mechanical and electrical connections

Power Line Filter Modules Applications

• Industrial power supply systems requiring EMI suppression
• Chassis-mounted electronic equipment protection
• General-purpose AC power line filtering

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version and technical parameters directly with Altran Magnetics, LLC or authorized distributors before procurement. Confirm that the chassis mounting requirements and terminal specifications align with your system design. Ensure compliance with relevant safety and environmental standards applicable to your region and application environment prior to finalizing purchase orders.

Power Line Filter Modules Selection Notes

Select this model when a high-current (60 A) single-phase filter is required for chassis installation. Ensure the operating voltage does not exceed 250 VAC and the frequency matches 50/60 Hz. Verify that the threaded post terminal style is compatible with your wiring infrastructure. Consider thermal management and physical space constraints associated with chassis mounting configurations during the design phase.

Power Line Filter Modules Part Context

This component belongs to the AMI series of line filter modules from Altran Magnetics, LLC. The series offers various current ratings and configurations for different power line filtering needs. The AMI-M11M-6-60-B specifically addresses applications demanding higher current capacity compared to lower-rated variants within the same product family, providing a standardized solution for industrial and commercial power conditioning.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult Altran Magnetics, LLC for potential cross-references or updated models. Ensure any replacement maintains identical current, voltage, and mounting specifications to guarantee system compatibility and performance.
