AMI-M11P-1-6-B-2

Power Line Filter Modules Overview

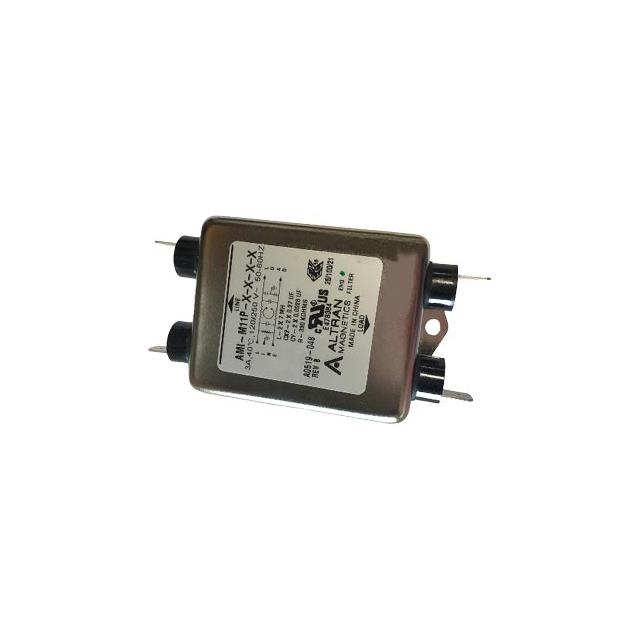

The AMI-M11P-1-6-B-2 is a single-phase EMC/EMI line filter manufactured by Altran Magnetics, LLC. It features a single-stage configuration designed for chassis mounting with wire lead terminations. The component supports an AC voltage rating of 250V and handles a continuous current of 6A. It operates effectively at frequencies of 50Hz and 60Hz, providing noise suppression for power lines in standard electrical environments.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference filtering architecture
• Chassis mount installation with integrated wire leads
• Designed for 50/60Hz AC power line applications

Power Line Filter Modules Applications

• AC power input filtering for electronic equipment
• Electromagnetic compatibility enhancement in industrial devices
• Noise reduction in general-purpose power supplies

Power Line Filter Modules Procurement Notes

Verify the specific datasheet for detailed attenuation curves and safety certifications before integration. Confirm that the wire lead termination style matches your assembly requirements. Ensure the 6A current rating and 250V voltage limit align with your system's operational parameters to prevent component failure.

Power Line Filter Modules Selection Notes

Select this model when a single-stage solution is sufficient for your EMI requirements. It is suitable for applications requiring 6A capacity at 250VAC. Consider alternative models if higher current ratings or multi-stage filtering performance are necessary for stricter noise compliance standards.

Power Line Filter Modules Part Context

This component belongs to the AMI series of power line filters from Altran Magnetics. The series offers various current ratings and mounting options. This specific part provides a compact solution for basic EMI suppression in single-phase AC systems, complementing other components in the manufacturer's lineup.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes such as the AMI-M11P-1-6-B-1 variant. Verify that any replacement maintains the same 6A rating, 250VAC voltage, and single-stage topology to ensure functional equivalence.
