AMI-M11R-7M-10-B-1

Power Line Filter Modules Overview

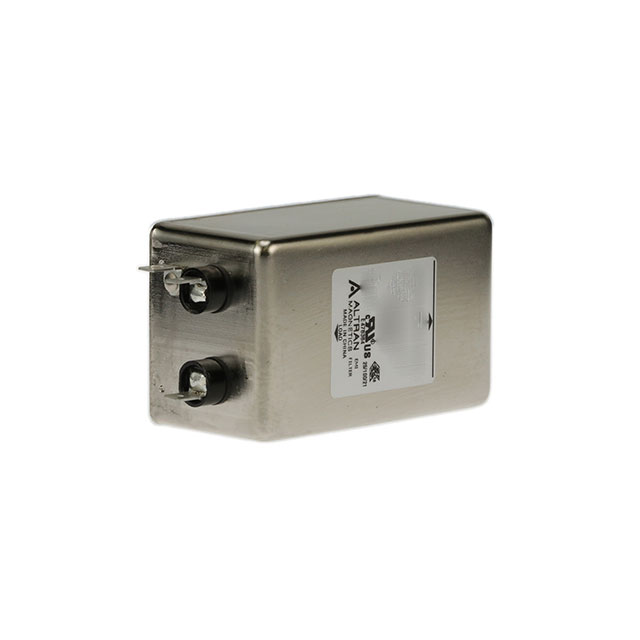

The AMI-M11R-7M-10-B-1 is a single-phase EMC/EMI power line filter module manufactured by Altran Magnetics, LLC. It is rated for 10 A current and 250 VAC voltage at 50/60 Hz operating frequencies. The unit features a single-stage design housed in a metal enclosure suitable for chassis mounting. Electrical connections are provided via quick-connect terminals, ensuring compatibility with standard IEC 320-C14 interfaces.

Power Line Filter Modules Feature Summary

• Single-phase EMC/EMI line filtering architecture
• Metal housing construction for durability
• Quick-connect terminal interface
• Chassis mount installation format

Power Line Filter Modules Applications

• SMPS emission control
• General purpose power line filtering
• Industrial equipment input stages

Power Line Filter Modules Procurement Notes

Verify the complete part number including all suffixes to ensure correct configuration. Confirm that the required current rating of 10 A and voltage of 250 VAC match the system specifications. Check lead times as manufacturing schedules may vary. Ensure the chassis mounting style and quick-connect terminals are compatible with the existing assembly design before ordering.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is sufficient for EMI suppression requirements. The 10 A rating defines the maximum continuous load capacity. Verify that the physical dimensions of the metal housing fit the available chassis space. Ensure the quick-connect terminals align with the wiring harness or PCB layout constraints of the target application.

Power Line Filter Modules Part Context

This model belongs to the AMI-M11 series of power line filters from Altran Magnetics. The series offers various configurations for different current and voltage ratings. The 'R' designation typically indicates specific internal circuitry or performance characteristics within the product family. These modules are designed for reliable noise reduction in AC power inputs.

Power Line Filter Modules Replacement Considerations

Consult official substitution guides for verified alternatives. Cross-referencing requires matching electrical ratings and mechanical form factors. Generic equivalents may not provide identical attenuation characteristics.
