AMI-M11S-1-6-C

Power Line Filter Modules Overview

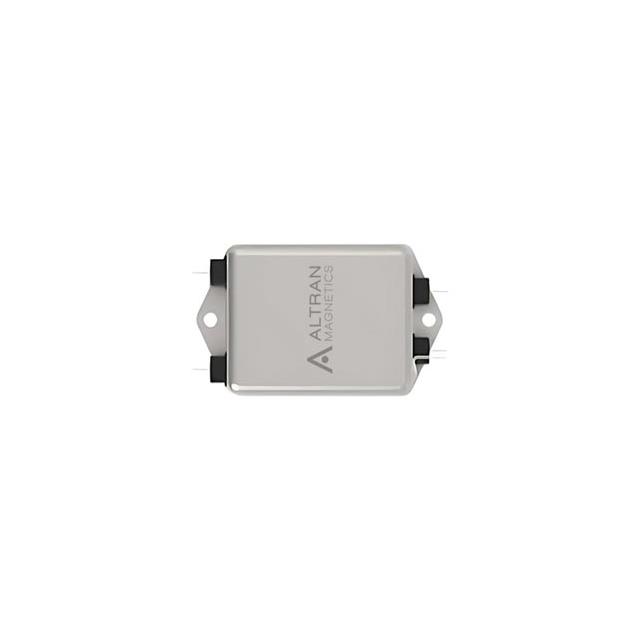

The AMI-M11S-1-6-C is a single-phase power line filter module manufactured by Altran Magnetics, LLC. Designed for chassis mounting, this component operates at a voltage rating of 250VAC and handles a current capacity of 6A within the 50/60Hz frequency range. It features quick connect terminals for installation and functions as a single-stage EMC/EMI filter.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference suppression
• Chassis mount physical configuration
• Quick connect terminal interface

Power Line Filter Modules Applications

• General purpose electronic equipment filtering
• EMC compliance in AC power inputs
• Industrial control system power lines

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'S' against the required datasheet revision to ensure compatibility with existing board layouts or enclosure designs. Confirm that the quick connect terminal spacing matches the mating connector specifications before finalizing procurement orders.

Power Line Filter Modules Selection Notes

Select this model when a single-stage solution is sufficient for the target EMI reduction requirements. Ensure the operating environment remains within the specified temperature range and that the 6A current rating accommodates peak load conditions without saturation.

Power Line Filter Modules Part Context

This component belongs to the AMI-M11 series of power line filters from Altran Magnetics. The series offers various configurations for different current ratings and mounting styles, providing standardized solutions for noise suppression in AC power applications across multiple industries.

Power Line Filter Modules Replacement Considerations

The AMI-M11E-1-6-D-1 is a related variant within the same product family. Verify terminal type and internal circuit topology differences before substituting to ensure functional equivalence in the specific application.
