AMI-M12A-1-3-B

Power Line Filter Modules Overview

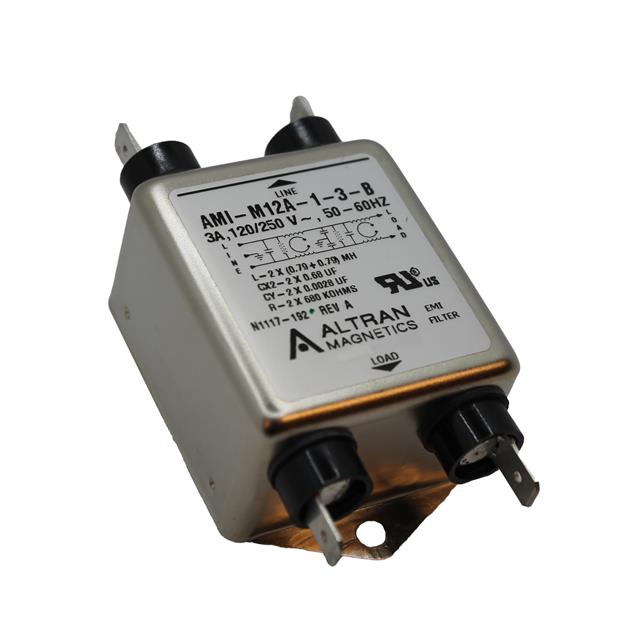

The AMI-M12A-1-3-B is a single-phase power line filter module manufactured by Altran Magnetics, LLC. It features a base mount configuration with quick-connect terminals for chassis installation. The component is rated for a maximum current of 3 A and an input voltage of 250 VAC. It operates within a frequency range of 50/60 Hz and includes an inductance value of 1.48 mH. The device supports a two-stage filtering configuration and functions reliably within a working temperature range of -10°C to 40°C.

Power Line Filter Modules Feature Summary

• Single-phase EMC/EMI line filtering capability
• Two-stage internal filtering architecture
• Chassis base mount design with quick-connect terminals

Power Line Filter Modules Applications

• General industrial equipment noise suppression
• Commercial machinery power line conditioning
• Indoor electronic system interference reduction

Power Line Filter Modules Procurement Notes

Verify the specific suffix codes against official Altran Magnetics documentation to ensure correct terminal type and mounting specifications. Confirm that the required current rating and voltage levels match the application's electrical parameters before procurement. Cross-reference the datasheet for precise physical dimensions and terminal pitch requirements to guarantee compatibility with existing chassis layouts.

Power Line Filter Modules Selection Notes

Select this model when a single-phase solution with a 3 A current capacity is required for 250 VAC systems. Ensure the application environment remains within the specified -10°C to 40°C operating temperature range. Verify that the quick-connect terminal style aligns with the available wiring infrastructure and that the base mount form factor fits the designated enclosure space.

Power Line Filter Modules Part Context

This component belongs to the AMI-M12A series of power line filter modules from Altran Magnetics. The series offers various current ratings and configurations tailored for different electromagnetic interference mitigation needs. The AMI-M12A-1-3-B specifically addresses lower current applications requiring robust single-phase filtering in compact chassis-mounted designs.

Power Line Filter Modules Replacement Considerations

Consult official manufacturer substitution lists for verified equivalents. Generic cross-references may not match the specific two-stage architecture or terminal configuration.
