AMI-M12A-6-10-B

Power Line Filter Modules Overview

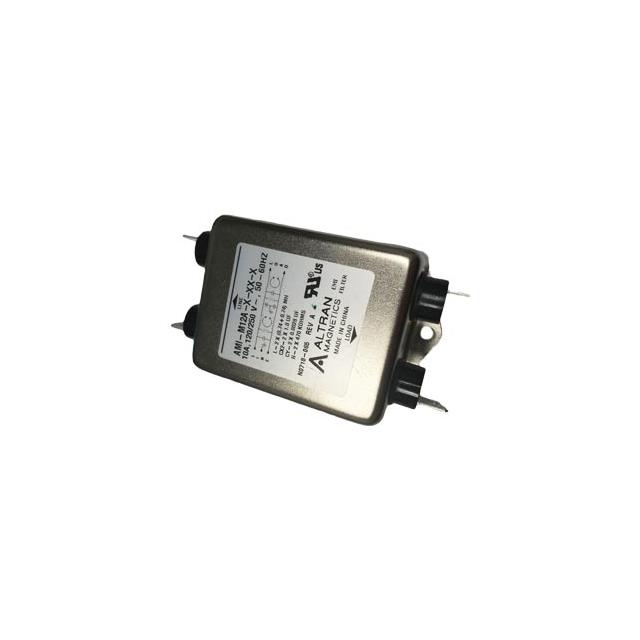

The AMI-M12A-6-10-B is a single-phase power line EMI filter module manufactured by Altran Magnetics, LLC. It features a two-stage filtering configuration designed for chassis mounting applications. The component is rated for a maximum current of 10 A and operates at voltages up to 250 VAC. It supports standard utility frequencies of 50/60 Hz. The unit utilizes quick-connect terminals for electrical interface and is constructed for base installation.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Single-phase design optimized for AC power lines
• Chassis mount construction with quick-connect termination

Power Line Filter Modules Applications

• Industrial equipment EMC mitigation
• Power supply input filtering
• General purpose electronic device protection

Power Line Filter Modules Procurement Notes

Verify the specific suffix codes against official Altran documentation to confirm terminal type and voltage ratings. Ensure the selected variant matches the required chassis mounting style and current capacity for the target application circuit.

Power Line Filter Modules Selection Notes

Select this model based on the requirement for a 10 A rated single-phase filter with two-stage attenuation. Confirm that the 250 VAC rating aligns with the system voltage and that the quick-connect terminal style is compatible with the existing wiring harness or PCB layout.

Power Line Filter Modules Part Context

This component belongs to the AMI-M12A series of power line filters from Altran Magnetics. The series offers various current ratings and mounting options. This specific part number denotes the 10 A variant within the M12A family, distinguished by its two-stage internal configuration and base-mount physical form factor.

Power Line Filter Modules Replacement Considerations

Cross-reference with other Altran AMI-M12A variants for different current ratings. Verify compatibility with alternative manufacturers' single-phase EMI filters offering identical 10 A ratings and two-stage performance characteristics.
