AMI-M12B-1-20-B

Power Line Filter Modules Overview

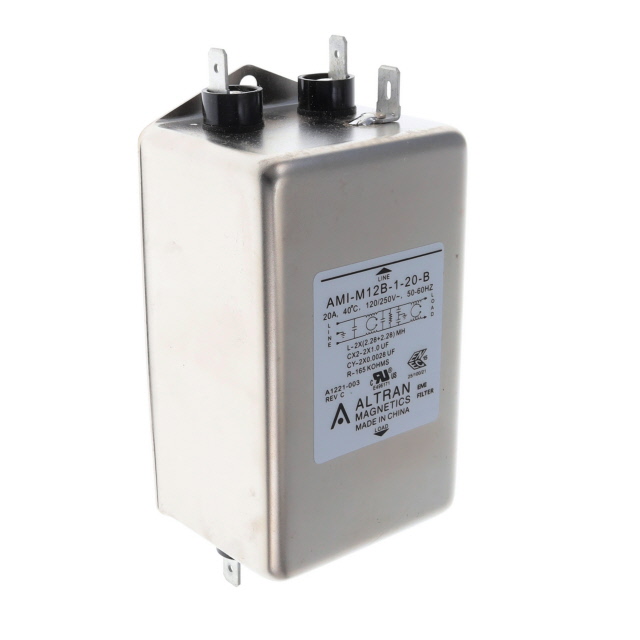

The AMI-M12B-1-20-B is a single-phase power line filter module manufactured by Altran Magnetics, LLC. Designed for chassis mounting, this component operates at a rated AC voltage of 250V and supports a continuous current of 20A at frequencies of 50/60Hz. It features a two-stage configuration to provide effective electromagnetic interference suppression. The unit utilizes quick-connect terminals for electrical interface and is intended for general-purpose applications within standard industrial environments.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Chassis mount design for secure panel installation
• Quick-connect terminal style for simplified wiring
• Single-phase configuration for standard AC line protection

Power Line Filter Modules Applications

• General purpose power line filtering
• Industrial equipment EMI suppression
• Chassis-mounted power distribution units

Power Line Filter Modules Procurement Notes

Verify the specific current rating and voltage tolerance against the application requirements before procurement. Confirm that the chassis mounting dimensions align with the enclosure design. Ensure the quick-connect terminal type matches the existing harness connectors. Validate that the two-stage filtering characteristics meet the specific electromagnetic compatibility standards required for the end-use environment.

Power Line Filter Modules Selection Notes

Select this model when a 20A capacity and 250VAC rating are required for single-phase applications. The two-stage design offers superior performance compared to single-stage alternatives for high-noise environments. Consider the chassis mounting requirement as it dictates the physical integration method. Verify that the operating frequency range of 50/60Hz covers the system's power supply specifications.

Power Line Filter Modules Part Context

This component belongs to the AMI-M12B series of power line filter modules from Altran Magnetics. The series provides various current ratings and configurations for different power handling needs. The AMI-M12B-1-20-B specifically denotes the 20A variant within this lineup, sharing common form factors and mounting styles with other models in the family while differing in electrical capacity.

Power Line Filter Modules Replacement Considerations

Direct substitutes may include other Altran Magnetics models within the AMI-M12B series with equivalent or higher current ratings. Cross-brand replacements must match the 20A current, 250VAC voltage, and chassis mounting footprint. Verify that the replacement maintains the two-stage filtering topology to ensure comparable electromagnetic interference suppression performance.
