AMI-M12B-6-20-B is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists Altran Magnetics, LLC. Its product description is LINE FILTER 250VAC 20A CHASS MNT. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for AMI-M12B-6-20-B
- Description：LINE FILTER 250VAC 20A CHASS MNT
- Series：AMI-M12B
- Mfr：Altran Magnetics, LLC
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (8-32)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for AMI-M12B-6-20-B
Power Line Filter Modules Overview

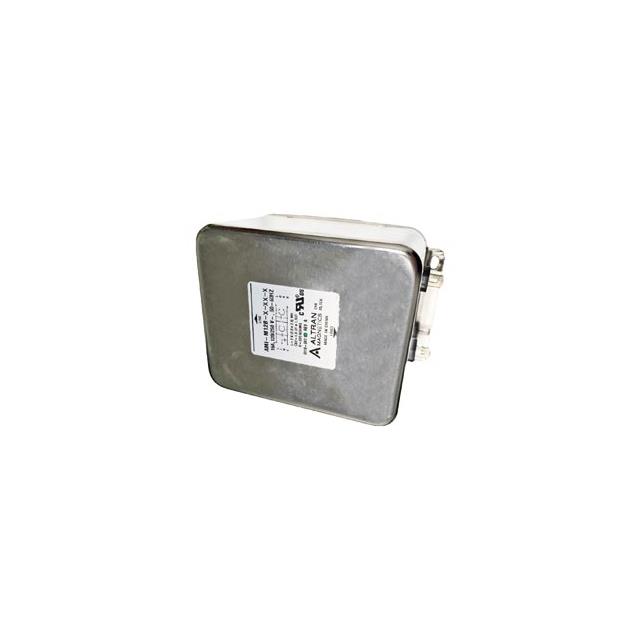

The AMI-M12B-6-20-B is a single-phase EMC/EMI line filter module manufactured by Altran Magnetics, LLC. It is rated for 250VAC and 20A at 50/60Hz. The unit features a two-stage filtering configuration designed to suppress electromagnetic interference in power lines. It utilizes a chassis mount installation type with threaded post terminals (8-32) for secure connection. The component is currently in active production status.
Power Line Filter Modules Feature Summary
- Two-stage EMI filtering architecture
- Chassis mount design
- Threaded post terminal interface
Power Line Filter Modules Applications
- General purpose power line filtering
- Industrial equipment noise suppression
- Electronic device EMI reduction
Power Line Filter Modules Procurement Notes
Verify the specific part number suffix against official Altran Magnetics documentation to confirm terminal style and voltage ratings. Ensure compatibility with chassis mounting dimensions and thermal requirements before integration. Cross-reference datasheet specifications for environmental operating limits.
Power Line Filter Modules Selection Notes
Select this model for applications requiring robust single-phase EMI suppression in space-constrained chassis environments. The threaded post terminals offer reliable mechanical stability compared to quick-connect alternatives. Evaluate current load and voltage ratings against system specifications to ensure adequate performance margins.
Power Line Filter Modules Part Context
This component belongs to the AMI series of power line filter modules from Altran Magnetics. The series provides various configurations for different current and voltage requirements. The AMI-M12B variant specifically denotes a single-phase unit with chassis mounting capabilities, distinct from panel mount or PCB mount options within the broader product family.
Power Line Filter Modules Replacement Considerations
Consult official manufacturer substitution lists for verified equivalents. Generic cross-references may not match the two-stage filtering characteristics or terminal specifications.
