AMI-M12Z-1-10-B

Power Line Filter Modules Overview

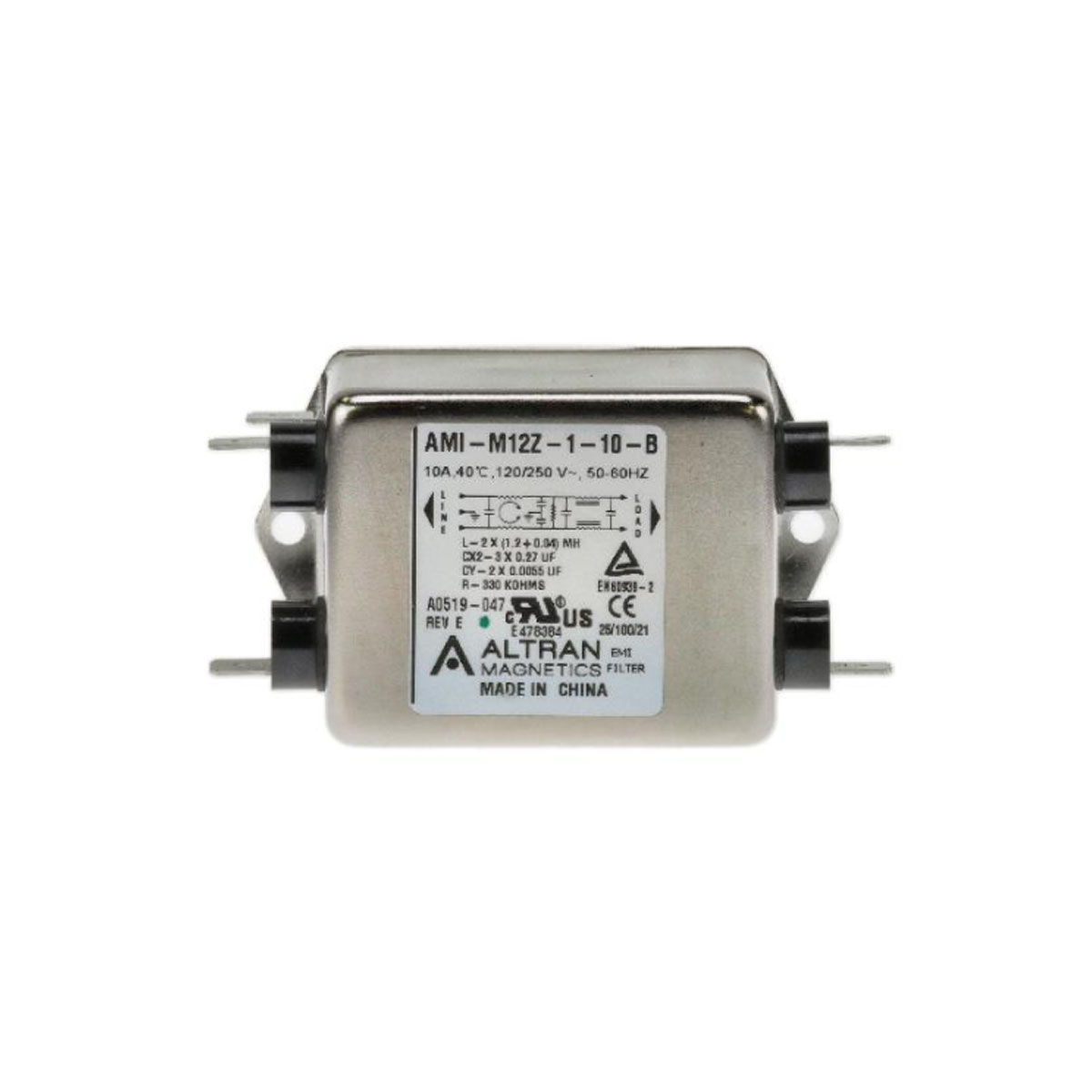

The AMI-M12Z-1-10-B is a single-phase EMC/EMI line filter module manufactured by Altran Magnetics, LLC. It features a two-stage filtering design with a rated current of 10 A and a voltage rating of 250 VAC at 50/60 Hz. The unit utilizes quick connect terminals for circuit integration and supports chassis mounting. Operating temperatures range from -40°C to +85°C.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Quick connect terminal configuration for simplified assembly
• Chassis mount installation style for secure positioning

Power Line Filter Modules Applications

• Industrial equipment power supply input protection
• Medical device power filtering
• Telecommunications infrastructure noise reduction

Power Line Filter Modules Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to confirm exact electrical characteristics and terminal configurations. Ensure the selected variant matches the required current and voltage ratings for the target application environment. Cross-reference part numbers with authorized distributors to confirm availability and authenticity.

Power Line Filter Modules Selection Notes

Select this component when a compact, two-stage EMI filter is required for single-phase AC lines up to 10 A. Consider the quick connect interface for automated or semi-automated assembly processes. Verify that the chassis mounting footprint and terminal spacing align with the mechanical design constraints of the enclosure.

Power Line Filter Modules Part Context

This model belongs to the AMI-M12Z series of power line filter modules from Altran Magnetics. The series provides general-purpose EMI/RFI suppression for various electronic applications. The specific suffix indicates the rated current and terminal type within the standardized product family.

Power Line Filter Modules Replacement Considerations

Consult official substitution guides for equivalent two-stage filters with matching 10 A ratings and quick connect interfaces. Verify compatibility with existing mounting hardware and terminal connections before implementation.
