AMI-M12Z-1-20-B

Power Line Filter Modules Overview

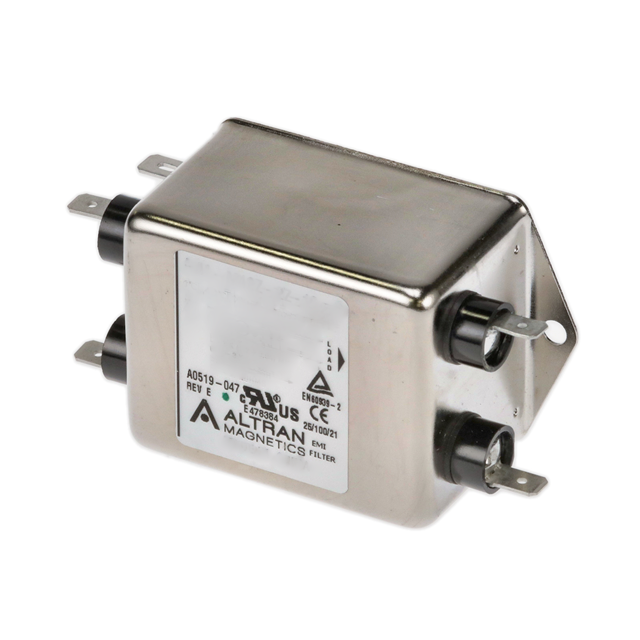

The AMI-M12Z-1-20-B is a single-phase EMC/EMI line filter module manufactured by Altran Magnetics, LLC. It features a two-stage filtering design intended for chassis mounting applications. The unit supports a continuous current rating of 20 A and operates with a voltage rating of 250 VAC at standard frequencies of 50 Hz or 60 Hz. The device utilizes quick-connect terminals for electrical interfacing.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Designed for direct chassis mounting installation
• Equipped with quick-connect terminal interfaces

Power Line Filter Modules Applications

• Industrial equipment power input stages
• Commercial machinery EMI mitigation
• Power supply line conditioning

Power Line Filter Modules Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm compatibility with system requirements. Ensure that the 20 A current rating and 250 VAC voltage specifications align with the target application's electrical parameters before procurement.

Power Line Filter Modules Selection Notes

Select this component when a two-stage filtering solution is required for single-phase AC lines. Confirm that the chassis mount form factor fits the enclosure constraints and that the quick-connect terminal style matches the existing wiring harness or PCB layout.

Power Line Filter Modules Part Context

This component belongs to the AMI series of power line filter modules from Altran Magnetics. These filters are engineered to reduce electromagnetic interference in AC power circuits. The specific model denotes a 20 A rated unit within the broader family of line conditioners designed for industrial and commercial environments.
