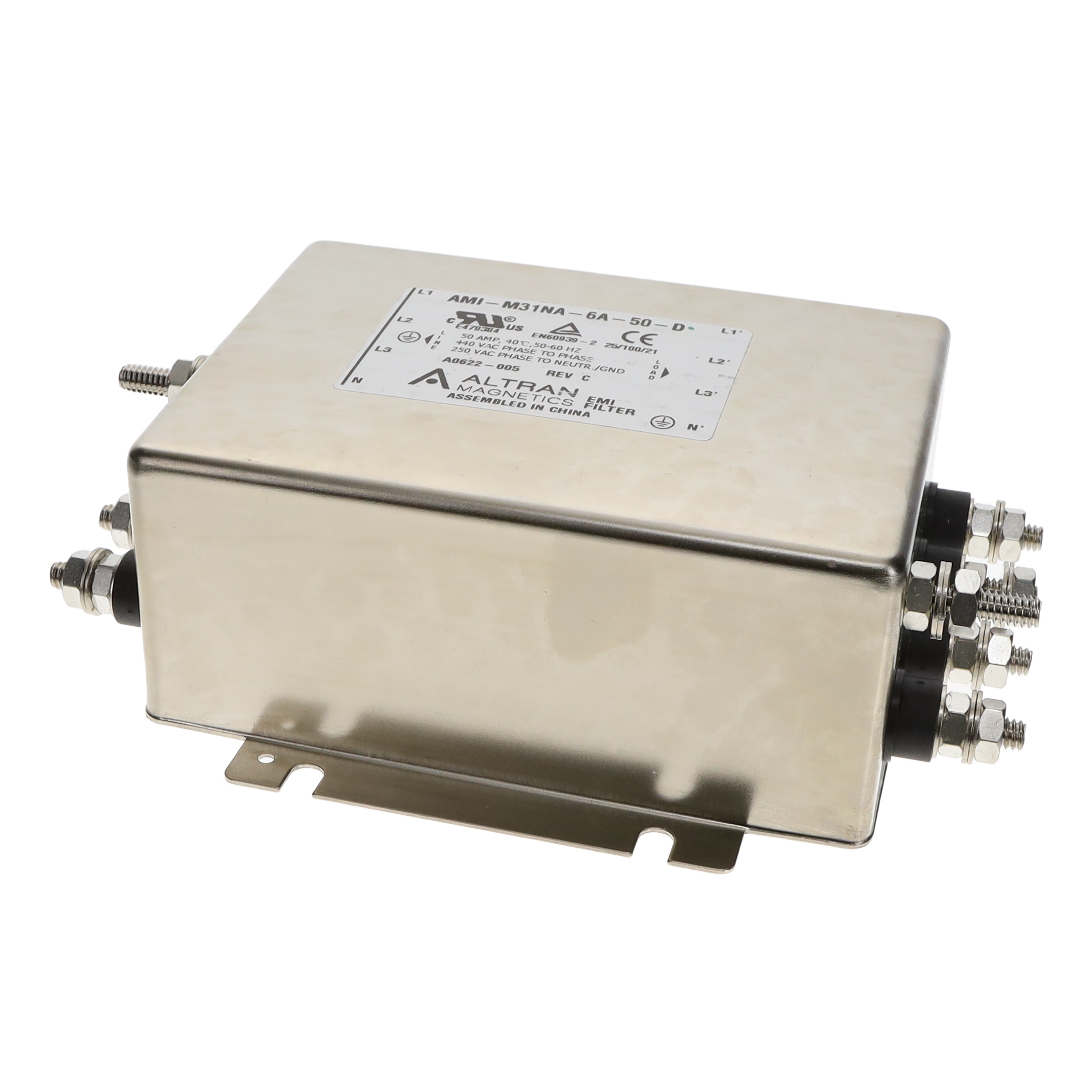

AMI-M31NA-6A-50-D

$87.86

Description：LINE FILTER 50A CHASSIS MOUNT
Series：AMI-M31NA
Mfr：Altran Magnetics, LLC
Package：Box

SKU:94a2c72423c7 Category: Power Line Filter Modules Brand: Altran Magnetics, LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AMI-M31NA-6A-50-D is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists Altran Magnetics, LLC. Its product description is LINE FILTER 50A CHASSIS MOUNT. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for AMI-M31NA-6A-50-D

Description：LINE FILTER 50A CHASSIS MOUNT
Series：AMI-M31NA
Mfr：Altran Magnetics, LLC
Package：Box
Filter Type：Three Phase (Wye)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：50 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：-
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Threaded Post (1/4-20)
Inductance：670µH
Voltage - Rated AC (Phase to Ground/Neutral)：250 V
Voltage - Rated AC (Phase to Phase)：440 V

Power Line Filter Modules datasheet and documents for AMI-M31NA-6A-50-D

AMI-M31NA-6A-50-D

Power Line Filter Modules Overview

The AMI-M31NA-6A-50-D is a three-phase (Wye) EMC/EMI line filter manufactured by Altran Magnetics, LLC. It supports a current rating of 50 A at frequencies of 50/60 Hz with a voltage rating of 250 to 440 V. The unit features a single-stage design and utilizes threaded post terminals sized 1/4-20 for mounting.

Power Line Filter Modules Feature Summary

Provides electromagnetic interference suppression in three-phase Wye configurations
Utilizes a single-stage filtering architecture
Features threaded post terminal connections

Power Line Filter Modules Applications

Industrial power distribution systems requiring EMI mitigation
Three-phase equipment interfacing with sensitive electronics
General-purpose AC power line filtering applications

Power Line Filter Modules Procurement Notes

Verify the specific leakage current requirements against the datasheet range of 1.62 to 2.82 mA. Confirm that the 1/4-20 threaded post interface matches the chassis mounting hardware. Ensure the operating frequency aligns with the 50/60 Hz specification before integration into the power circuit.

Power Line Filter Modules Selection Notes

Select this component when a three-phase Wye configuration is required for noise reduction. The 50 A rating suits moderate to high-current industrial loads. Verify that the physical dimensions and threaded post mounting style are compatible with the available chassis space and installation constraints.

Power Line Filter Modules Part Context

This part belongs to the AMI series of line filters from Altran Magnetics. These components are designed to attenuate conducted emissions in AC power lines. The manufacturer specializes in electrical and electronic solutions for OEM applications across various industries.
