AMI-M31NC-1-20-D

Power Line Filter Modules Overview

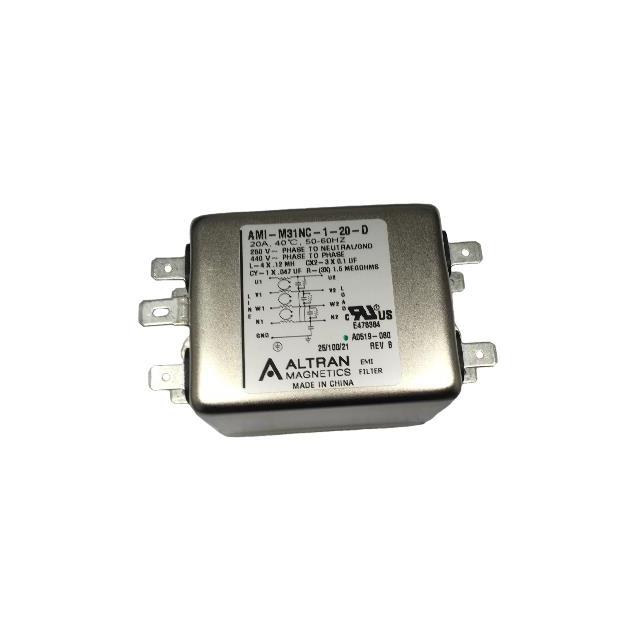

The AMI-M31NC-1-20-D is a three-phase EMC/EMI line filter manufactured by Altran Magnetics, LLC. It features a single-stage design with a rated current of 20 A and operates at voltages up to 250 VAC for 50/60 Hz applications. The unit utilizes quick connect terminals for installation.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression in three-phase power systems
• Utilizes a single-stage filtering architecture
• Equipped with quick connect terminal interfaces

Power Line Filter Modules Applications

• Three-phase (Wye) power line filtering
• EMC/EMI noise reduction in AC power circuits

Power Line Filter Modules Procurement Notes

Verify the specific datasheet for the AMI-M31NC-1-20-D to confirm detailed electrical characteristics and mechanical dimensions. Ensure compatibility with the target system's voltage and current requirements before integration. Cross-reference manufacturer documentation for any updates regarding RoHS compliance or environmental ratings.

Power Line Filter Modules Selection Notes

Select this component for applications requiring single-stage EMI suppression in three-phase Wye configurations. Confirm that the 20 A rating and 250 VAC maximum voltage align with the circuit specifications. Evaluate the quick connect interface against available PCB or wiring constraints.

Power Line Filter Modules Part Context

This part belongs to the AMI series of power line filters from Altran Magnetics, LLC. These components are designed to mitigate conducted emissions in AC power lines. The model designation indicates a three-phase configuration with specific current and voltage ratings suitable for general industrial or commercial power conditioning.
