AMPLA4020S-150MT

Fixed Inductors Overview

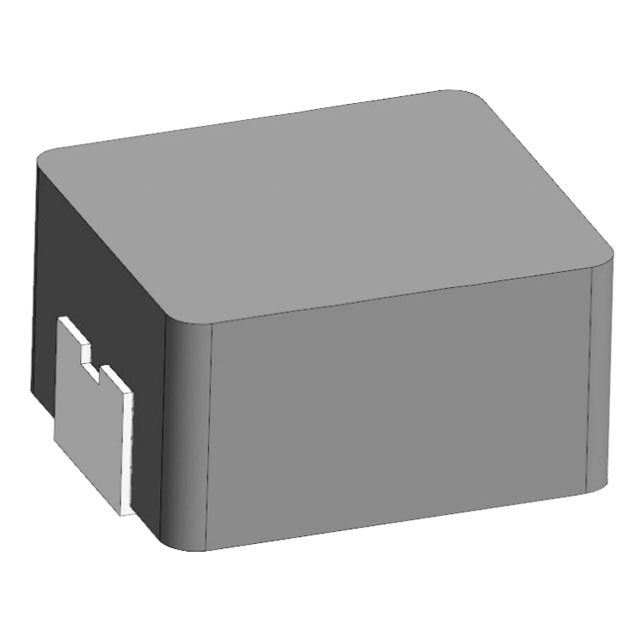

The AMPLA4020S-150MT is a shielded molded power inductor from Abracon LLC, designed for surface-mount applications. It features an inductance of 15 µH with a tolerance of ±20%. The component has a maximum DC resistance of 374 mΩ and supports a saturation current of 1.9 A. Operating within a temperature range of -55°C to +125°C, it utilizes carbonyl powder core material. The physical dimensions are 4.45 mm in length, 4.06 mm in width, and 1.8 mm in height, housed in a standard SMD package.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference
• Molded design ensures mechanical stability
• Carbonyl powder core material provides high efficiency

Fixed Inductors Applications

• High current power supply circuits
• DC-DC converter filtering
• Power management modules

Fixed Inductors Procurement Notes

Verify the specific part number against official Abracon documentation to confirm electrical parameters such as saturation current and DC resistance. Ensure compatibility with surface-mount assembly processes and check for RoHS compliance status in the latest datasheet before procurement.

Fixed Inductors Selection Notes

Select this component for applications requiring compact shielding and stable performance at elevated temperatures. Consider the 1.9 A saturation limit and 374 mΩ resistance when designing power stages. Verify footprint compatibility with the 4.45 x 4.06 mm package size during PCB layout.

Fixed Inductors Part Context

This component belongs to the AMPLA4020S series of fixed power inductors. The series offers various inductance values optimized for high-current applications. It is manufactured by Abracon LLC, a provider of passive components for electronic systems.

Fixed Inductors Replacement Considerations

Cross-reference with other AMPLA4020S variants or similar shielded SMD power inductors from authorized distributors. Confirm identical pinout, dimensions, and electrical ratings before substitution.
