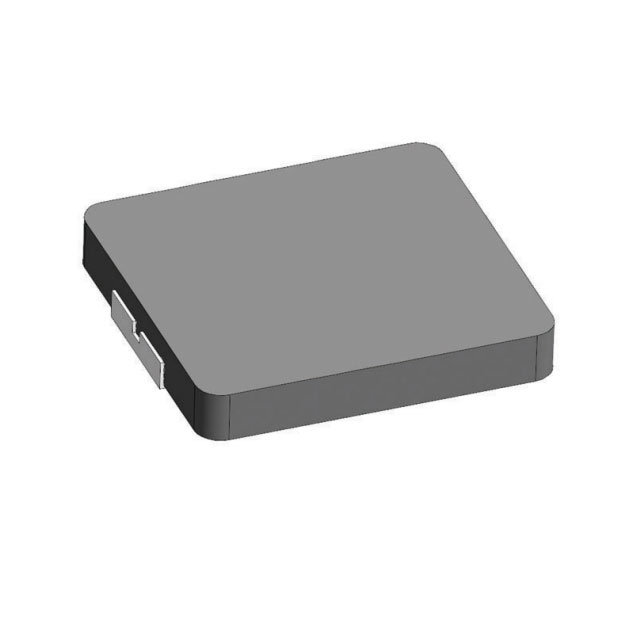

AMPLA7030Q-2R2MT is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is FIXED IND 2.2UH 8A 20 MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for AMPLA7030Q-2R2MT
- Description：FIXED IND 2.2UH 8A 20 MOHM SMD
- Series：AMPLA7030Q
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Molded
- Material - Core：Carbonyl Powder
- Inductance：2.2 µH
- Tolerance：±20%
- Current Rating (Amps)：8:00 AM
- Current - Saturation (Isat)：14A
- Shielding：Shielded
- DC Resistance (DCR)：20mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：AEC-Q200
- Operating Temperature：-55°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.287" L x 0.260" W (7.30mm x 6.60mm)
- Height - Seated (Max)：0.118" (3.00mm)
- Features：-
Fixed Inductors datasheet and documents for AMPLA7030Q-2R2MT
Fixed Inductors Overview
AMPLA7030Q-2R2MT is a shielded surface-mount power inductor from Abracon LLC, rated at 2.2 µH with a ±20% tolerance. It supports a maximum DC current of 8 A and features a maximum DC resistance of 20 mΩ. The component exhibits a saturation current of 14 A and operates within a temperature range of -55°C to +125°C. Its molded construction utilizes metal alloy core material, ensuring robust performance for high-current applications.
Fixed Inductors Feature Summary
- Shielded molded design minimizes electromagnetic interference
- High saturation current capability for stable operation under load
- Automotive-grade reliability certified to AEC-Q200 standards
Fixed Inductors Applications
- Automotive electronics systems
- DC-DC converter circuits
- Power supply filtering stages
Fixed Inductors Procurement Notes
Verify the specific suffix 'Q' indicates automotive qualification status against official Abracon documentation. Confirm package dimensions and terminal compatibility with PCB layout requirements. Ensure sourcing channels provide valid RoHS compliance certificates. Cross-reference datasheet revisions to confirm parameter consistency before integration into final designs.
Fixed Inductors Selection Notes
Select this component when automotive reliability and compact shielding are required. Compare saturation current limits against peak load demands. Evaluate DC resistance impact on overall circuit efficiency. Verify operating temperature range suitability for the intended environmental conditions. Consider physical footprint constraints relative to available board space.
Fixed Inductors Part Context
This part belongs to the AMPLA7030Q series of shielded power inductors designed for demanding environments. The series emphasizes high current handling and low profile construction. It serves as a critical passive component in modern electronic systems requiring reliable energy storage and noise suppression.
Fixed Inductors Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source data. Consult manufacturer catalogs for direct equivalents or verify pin-compatible alternatives through official engineering change notices.
