AMPLA7030S-R68MT

$0.94

Description：FIXED IND 680NH 15.5A 5.5MOHM SM
Series：AMPLA7030S
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:24d5961860b4 Category: Fixed Inductors Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AMPLA7030S-R68MT is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is FIXED IND 680NH 15.5A 5.5MOHM SM. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for AMPLA7030S-R68MT

Description：FIXED IND 680NH 15.5A 5.5MOHM SM
Series：AMPLA7030S
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Molded
Material - Core：Carbonyl Powder
Inductance：680 nH
Tolerance：±20%
Current Rating (Amps)：15.5 A
Current - Saturation (Isat)：25A
Shielding：Shielded
DC Resistance (DCR)：5.5mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max)：0.118" (3.00mm)
Features：-

Fixed Inductors datasheet and documents for AMPLA7030S-R68MT

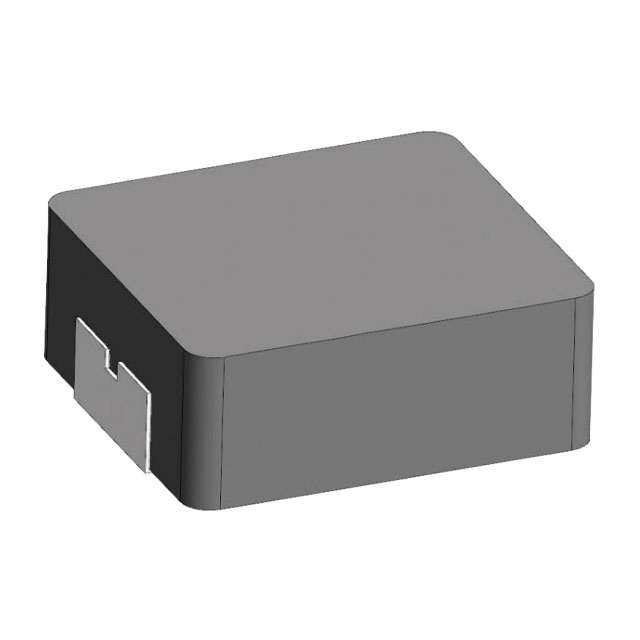

AMPLA7030S-R68MT

Fixed Inductors Overview

The AMPLA7030S-R68MT is a shielded surface-mount power inductor from Abracon LLC, designed for high-current applications. It features a carbonyl powder core and molded construction with dimensions of 7.3 mm x 6.6 mm x 2.8 mm. The component provides an inductance of 680 nH with a tolerance of ±20%. It supports a maximum DC current of 15.5 A and a saturation current of 25 A, while maintaining a maximum DC resistance of 5.5 mOhms. The device operates within a temperature range of -55°C to +125°C.

Fixed Inductors Feature Summary

Shielded molded construction for interference protection
Soft saturation characteristics for stable performance under load
High current handling capability suitable for demanding power circuits

Fixed Inductors Applications

High current power supply designs
DC/DC switching converter stages
Applications requiring electromagnetic interference suppression

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number against official Abracon documentation to ensure authenticity. Confirm that the received components match the specified electrical parameters, including inductance and current ratings. Check for physical integrity of the molded package and terminal connections. Ensure compliance with relevant environmental standards as stated in the product datasheet before integration into final assemblies.

Fixed Inductors Selection Notes

Select this component when circuit requirements demand high current capacity alongside compact surface-mount packaging. The low DC resistance minimizes power loss, while the shielded design reduces magnetic field emissions. Consider the operating temperature range and saturation current limits to ensure reliable performance under peak load conditions in space-constrained electronic systems.

Fixed Inductors Part Context

This component belongs to the AMPLA series of SMD molded power inductors manufactured by Abracon LLC. The series is characterized by its ability to handle significant current loads while maintaining small form factors. These inductors are engineered for modern electronics where space efficiency and thermal stability are critical design constraints.
