AN44067A-VF

Overview

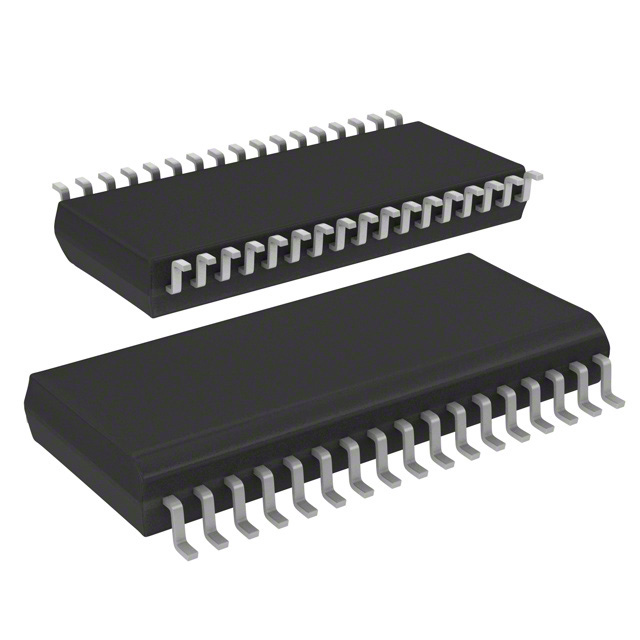

The AN44067A-VF is a stepping motor driver manufactured by Panasonic. It operates within a supply voltage range of 10 V to 34 V and draws a working supply current of 10 mA. The device features two output channels and dissipates power up to 0.466 W. It is housed in an HSOP-34 package, designed for surface mount (SMD/SMT) installation. The component is RoHS compliant and exhibits humidity sensitivity.

Feature Summary

• Integrated stepping motor driver functionality with dual output channels
• Surface mount design utilizing the HSOP-34 package format
• Operational support for supply voltages between 10 V and 34 V

Applications

• Stepping motor control systems
• Motion control applications
• Industrial automation equipment

Procurement Notes

Verify the specific manufacturer designation, as sources indicate both Panasonic and Panasonic Industry. Confirm the package type is HSOP-34 rather than SSOP-32. Ensure compliance with RoHS standards and check for moisture sensitivity labeling. Validate that the operating voltage range matches system requirements before procurement.

Selection Notes

Select this component for applications requiring a dedicated stepping motor driver with dual outputs. Consider the HSOP-34 surface mount package for board space efficiency. Verify that the 10 V to 34 V supply range aligns with the target circuit design. Check for humidity sensitivity handling requirements during storage and assembly.

Part Context

This part belongs to the Motor / Motion / Ignition Controllers & Drivers category under Panasonic's product portfolio. It falls within the Stepper Motor Controllers / Drivers sub-classification. The component is categorized under PMIC - Power Management ICs in some distributor listings.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
