Product Detailed Parameters
- Description：IC REG LINEAR 10V 50MA 3-HSIP
- Series：-
- Mfr：Panasonic Electronic Components
- Package：Bulk
- Output Configuration：Positive
- Output Type：Fixed
- Number of Regulators：1
- Voltage - Input (Max)：20V
- Voltage - Output (Min/Fixed)：10V
- Voltage - Output (Max)：-
- Voltage Dropout (Max)：-
- Current - Output：50mA
- Current - Quiescent (Iq)：1.4 mA
- Current - Supply (Max)：-
- PSRR：58dB (120Hz)
- Control Features：-
- Protection Features：Over Current
- Operating Temperature：-30°C ~ 125°C
- Mounting Type：Surface Mount

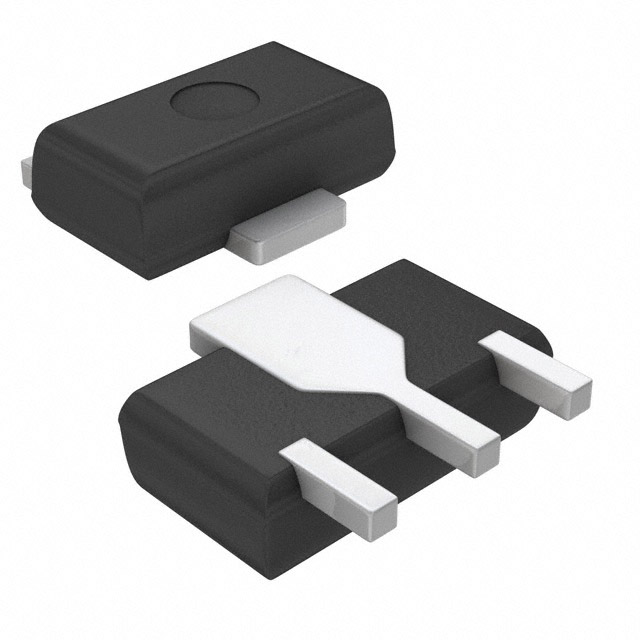

- Package / Case：TO-243AA
- Supplier Device Package：3-HSIP
- Grade：-
- Qualification：-
Download product information
Overview
The AN8010M is a 3-pin, positive output, low dropout voltage regulator from the AN80xx/AN80xxM series. It provides a fixed 10V DC output with a maximum load current of 50mA and a typical bias current of 0.6mA. The device features a maximum input/output voltage difference of 0.3V and includes built-in overcurrent protection. It operates within an ambient temperature range of -30°C to +80°C and is housed in an HSIP003-P-0000B package.
Feature Summary
- Fixed positive output voltage regulation
- Low dropout operation capability
- Integrated overcurrent protection circuit
Applications
- Battery-powered power supplies
- Reference voltage generation
Procurement Notes
Verify the specific package type (HSIP003-P-0000B) against design requirements. Confirm that the operating conditions remain within the absolute maximum ratings for supply voltage and power dissipation. Ensure appropriate input and output capacitors are selected according to the application circuit guidelines to maintain stability.
Selection Notes
Select this component when a stable 10V rail is required with minimal quiescent current consumption. The low dropout characteristic allows operation with small input-to-output voltage differentials. Verify thermal performance under maximum load conditions to ensure junction temperatures stay within safe limits.
Part Context
This part belongs to the AN80xx/AN80xxM series of monolithic voltage regulators. The 'M' suffix typically denotes a specific package variant or revision within the Panasonic Semiconductor lineup. These regulators are designed for applications requiring low power consumption and fixed voltage outputs.
Replacement Considerations
Compatible substitutes include other parts from the AN80xx series with identical 10V output specifications, such as the AN8010. Verify pinout compatibility and package dimensions before substitution.
FAQ
What is the minimum input voltage required for the AN8010M?
The minimum input voltage is determined by the output voltage plus the minimum dropout voltage. For the AN8010M, the output is 10V, and the minimum input/output voltage difference is specified at 0.07V under certain conditions, but the absolute maximum rating for supply voltage is 20V.
Does the AN8010M have internal short-circuit protection?
Yes, the device includes a built-in overcurrent protection circuit to safeguard against overload conditions.
