Product Detailed Parameters

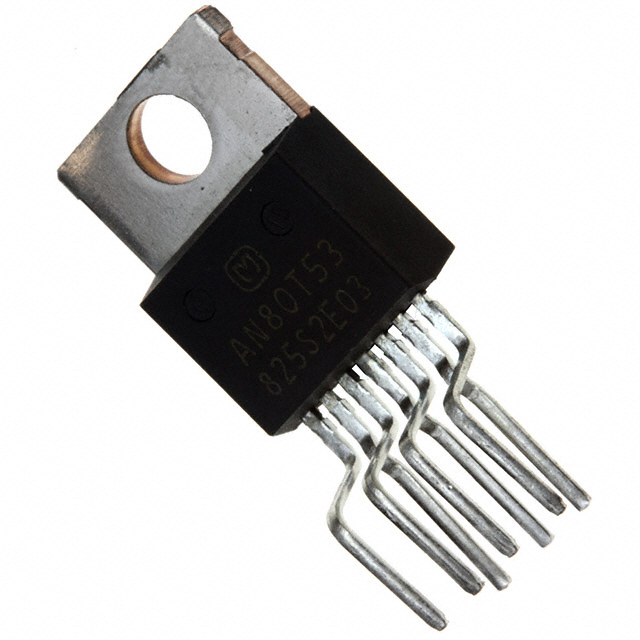

- Description：IC REG BUCK 5.1V QUAD TO220-7
- Series：-
- Mfr：Panasonic Electronic Components
- Package：Tube
- Function：Step-Down
- Output Configuration：Positive
- Topology：Buck
- Output Type：Fixed
- Number of Outputs：4
- Voltage - Input (Min)：15V
- Voltage - Input (Max)：30V
- Voltage - Output (Min/Fixed)：5.1V, 8.5V, 10V, 13V
- Voltage - Output (Max)：-
- Current - Output：-
- Frequency - Switching：-
- Synchronous Rectifier：No
- Operating Temperature：-30°C ~ 85°C (TA)
- Mounting Type：Through Hole
- Package / Case：TO-220-7
- Supplier Device Package：TO-220-7
- Grade：-
- Qualification：-
Download product information
Overview
The AN80T53 is a multi-output DC-DC switching regulator manufactured by Panasonic Electronic Components. It operates within an input voltage range of 15V to 30V and utilizes a TO-220-7 through-hole package. The device functions as a buck converter, providing multiple regulated output voltages from a single input source. As part of the PMIC - Voltage Regulators - DC DC Switching Regulators family, it is designed for applications requiring stable power distribution across various rails.
Feature Summary
- Multi-output regulation capability
- Buck converter topology
- Through-hole mounting configuration
Applications
- Home appliances
- Consumer electronics
- Computers
- Communications equipment
Procurement Notes
Verify component authenticity against Panasonic Industrial Devices Sales Company specifications. Confirm package integrity and pin alignment for the TO-220-7 form factor. Ensure compliance with RoHS standards and lead-free requirements prior to integration into final assemblies.
Selection Notes
Select this component when multiple voltage rails are required from a single input source between 15V and 30V. The through-hole package suits designs prioritizing mechanical stability over high-density surface mount layouts. Evaluate thermal management needs due to the power dissipation characteristics inherent in linear or switching regulators of this class.
Part Context
This component belongs to the Panasonic PMIC series focusing on DC-DC switching regulators. It complements other models like AN80T32 and AN80T05 within the same product line, offering distinct output configurations while maintaining consistent manufacturing quality and reliability standards for industrial and consumer electronic markets.
Replacement Considerations
Cross-reference with AN80T32 and AN80T05 for alternative output configurations within the same Panasonic family. Verify electrical compatibility and pinout similarities before substitution to ensure circuit functionality remains intact without redesign.
