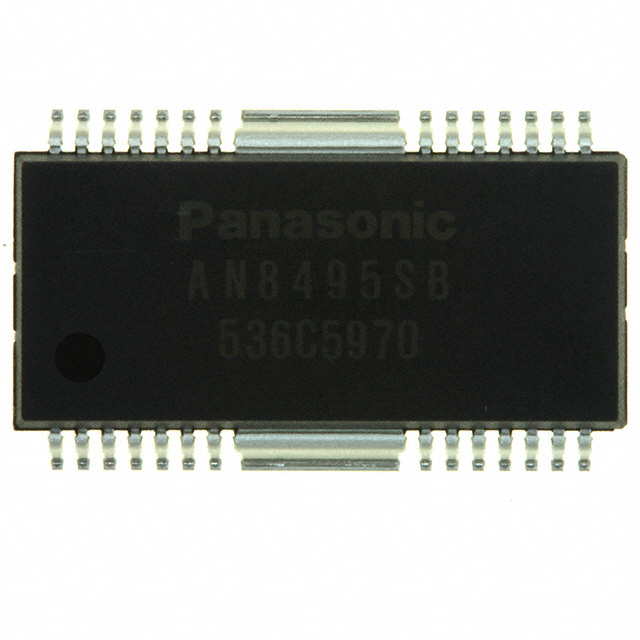

AN8495SB-E1V

Description：IC MOTOR DRIVER BIPOLAR 28HSOP
Series：-
Mfr：Panasonic Electronic Components
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:96298690ede2 Category: Motor Drivers, Controllers Brand: Panasonic Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC MOTOR DRIVER BIPOLAR 28HSOP
Series：-
Mfr：Panasonic Electronic Components
Package：Tape & Reel (TR),Cut Tape (CT)
Motor Type - Stepper：Bipolar
Motor Type - AC, DC：-
Function：Driver - Fully Integrated, Control and Power Stage
Output Configuration：Half Bridge (4)
Interface：Parallel
Technology：Power MOSFET
Step Resolution：-
Applications：General Purpose
Current - Output：1.5A
Voltage - Supply：4.75V ~ 5.25V
Voltage - Load：18V ~ 28V
Operating Temperature：-
Mounting Type：Surface Mount
Package / Case：28-BSOP (0.327", 8.30mm Width) + 2 Heat Tabs
Supplier Device Package：28-HSOP
Grade：-
Qualification：-

Download product information

AN8495SB-E1V

Overview

The AN8495SB-E1V is a bipolar stepper motor driver IC manufactured by Panasonic Electronic Components. It utilizes a DMOS process to deliver a maximum output voltage of 30V and an output current of 1.5A. The device features a fully integrated power stage with a parallel interface and a half-bridge output configuration suitable for bipolar stepper motors or DC motors. It supports PWM drive and 2-bit microstepping control, enabling precise motor operation within the specified electrical limits.

Feature Summary

Fully integrated power stage with parallel interface
Half-bridge output configuration for bipolar stepper motors
Supports PWM drive and 2-bit microstepping

Applications

Bipolar stepper motor control systems
DC motor driving applications
Precision positioning equipment requiring microstepping

Procurement Notes

Verify the exact part number AN8495SB-E1V against official Panasonic documentation to ensure compatibility with your design requirements. Confirm that the 28HSOP package and electrical specifications match your system constraints before procurement. Cross-reference datasheets from authorized distributors to validate component authenticity and technical parameters.

Selection Notes

Select this component when a dedicated bipolar stepper motor driver with integrated power stages is required. Ensure the application demands a 1.5A output current and 30V voltage rating. Verify that the parallel interface and 2-bit microstepping capabilities align with the controller logic used in the specific electronic design.

Part Context

This component belongs to the AN8495 series of stepping-motor-driving ICs developed using DMOS technology. The series is designed to provide robust motor control solutions with integrated power handling capabilities. The AN8495SB-E1V variant specifically offers the necessary interface and performance characteristics for standard bipolar stepper motor applications.

Replacement Considerations

Consult official Panasonic documentation for confirmed substitute part numbers. Do not assume cross-compatibility with other manufacturers' stepper motor drivers without verifying pinout, voltage, and current specifications.
