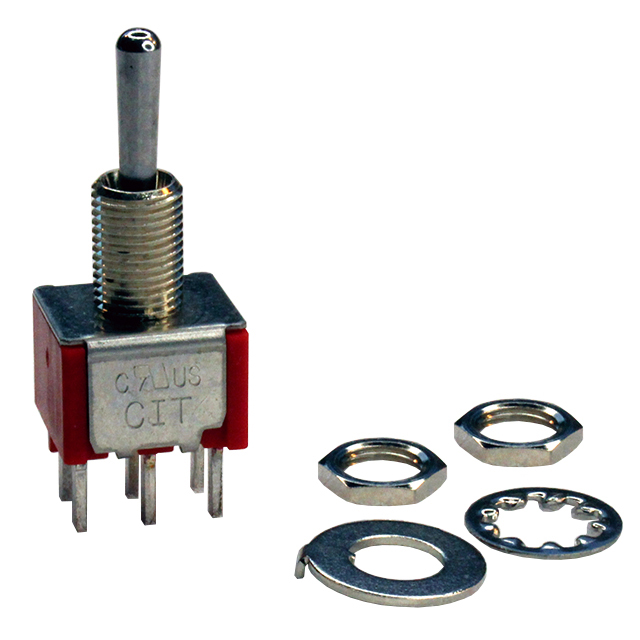

ANT23SECQE

ANT23SECQE is listed in the Toggle Switches range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is SWITCH TOGGLE DPDT 5A 120V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for ANT23SECQE

• Description：SWITCH TOGGLE DPDT 5A 120V
• Series：ANT
• Mfr：CIT Relay and Switch
• Package：Bulk
• Mounting Type：Through Hole
• Circuit：DPDT
• Switch Function：On-Off-On
• Current Rating (Amps)：5A (AC/DC)
• Voltage Rating - AC：120 V
• Voltage Rating - DC：28 V
• Actuator Type：Standard Round
• Actuator Length：10.67mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：PC Pin
• Panel Cutout Dimensions：-
• Bushing Thread：1/4-40
• Ingress Protection：-
• Features：-
• Operating Temperature：-40°C ~ 85°C

Toggle Switches datasheet and documents for ANT23SECQE
