AON1606

$0.05

Description：MOSFET N-CH 20V 700MA 3DFN
Series：-
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tape & Reel (TR)

SKU:50e793c91cd6 Category: Single FETs, MOSFETs Brand: Alpha & Omega Semiconductor Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AON1606 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Alpha & Omega Semiconductor Inc.. Its product description is MOSFET N-CH 20V 700MA 3DFN. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for AON1606

Description：MOSFET N-CH 20V 700MA 3DFN
Series：-
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tape & Reel (TR)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：20 V
Current - Continuous Drain (Id) @ 25°C：700mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)：1.5V, 4.5V
Rds On (Max) @ Id, Vgs：275mOhm @ 400mA, 4.5V
Vgs(th) (Max) @ Id：1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：0.85 nC @ 4.5 V
Vgs (Max)：±8V
Input Capacitance (Ciss) (Max) @ Vds：62.5 pF @ 10 V
FET Feature：-
Power Dissipation (Max)：900mW (Ta)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount

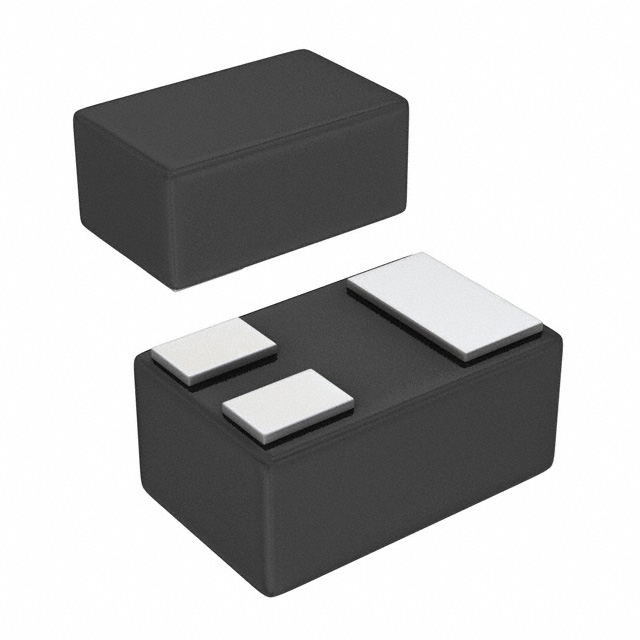

Supplier Device Package：3-DFN (1.0 x 0.60)
Package / Case：3-UFDFN

Single FETs, MOSFETs datasheet and documents for AON1606

AON1606

Single FETs, MOSFETs Overview

The AON1606 is a 20V N-Channel MOSFET utilizing advanced trench technology in a DFN 1.0x0.6 package. It features a drain-source breakdown voltage of 20V and a continuous drain current of 0.7A at 25°C. The on-resistance is less than 275mΩ at VGS=4.5V, 335mΩ at VGS=2.5V, and 390mΩ at VGS=1.8V. Gate charge is typically 0.85nC with an input capacitance of 62.5pF. Operating temperature ranges from -55°C to 150°C.

Single FETs, MOSFETs Feature Summary

Advanced trench MOSFET technology optimized for small footprint applications
Logic-level gate drive capability supporting low voltage switching operations
High ESD protection rating meeting HBM Class 1C standards

Single FETs, MOSFETs Applications

Load switch circuits
Portable battery-powered devices
Low voltage power management systems

Single FETs, MOSFETs Procurement Notes

Verify the specific revision status and datasheet version before integration. Confirm that the DFN 1.0x0.6 package dimensions align with the target PCB layout constraints. Ensure thermal design accounts for the junction-to-ambient resistance values provided in the specifications under intended operating conditions.

Single FETs, MOSFETs Selection Notes

Select this component for designs requiring minimal board space and efficient low-voltage switching. The device supports logic-level inputs, simplifying driver requirements. Evaluate thermal performance based on the specific copper area and airflow conditions of the final assembly to ensure reliable operation within the specified temperature range.

Single FETs, MOSFETs Part Context

Manufactured by Alpha & Omega Semiconductor Inc., the AON1606 belongs to the company's portfolio of power semiconductors designed for portable electronics and consumer applications. The manufacturer specializes in trench MOSFET technologies aimed at improving efficiency and reducing size in modern electronic systems.
