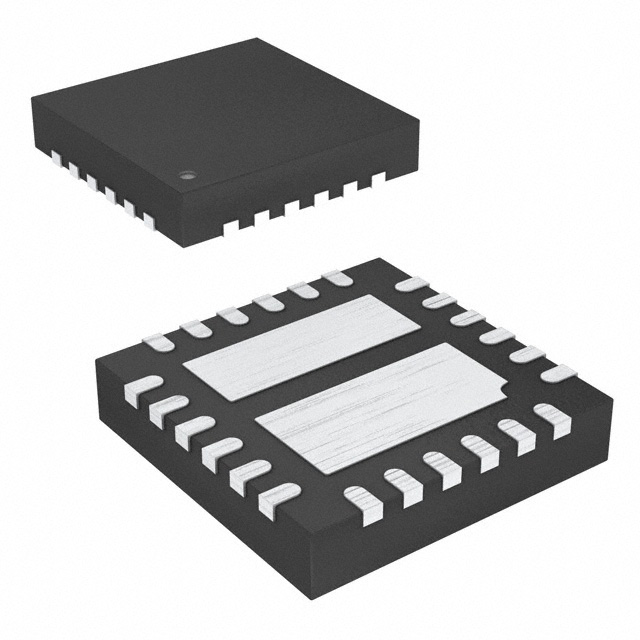

AOZ1110QI

Overview

The AOZ1110QI is a synchronous step-down DC-DC converter from Alpha & Omega Semiconductor, part of the EZBuck family. It integrates high-side and low-side power switches to deliver up to 4A of output current. The device operates with an input voltage range supporting standard bus voltages and features adjustable output voltage via external resistors. Designed for compact applications, it utilizes a small footprint package to minimize board space while maintaining high efficiency levels up to 95% under typical operating conditions.

Feature Summary

• Integrated synchronous rectification for enhanced efficiency
• Compact design suitable for space-constrained layouts
• Adjustable output voltage capability

Applications

• Point-of-load regulation in computing systems
• Power supply stages for telecommunications equipment
• Battery-powered portable devices requiring efficient conversion

Procurement Notes

Verify the specific suffix 'QI' against the manufacturer's official datasheet to confirm pinout compatibility and thermal specifications. Ensure the ordering information matches the exact package type required for your PCB layout. Cross-reference the revision level to guarantee functional equivalence with existing designs.

Selection Notes

Select this component when a 4A output current capacity is required within a minimal physical footprint. Consider its integration of power switches as a key factor for reducing external component count. Evaluate the efficiency characteristics relative to the expected load profile to ensure optimal thermal performance in the target application environment.

Part Context

This part belongs to the EZBuck series of synchronous buck regulators designed by Alpha & Omega Semiconductor. The series focuses on simplifying power supply design through high integration and ease of use. The AOZ1110 variant specifically targets applications needing reliable step-down conversion with moderate current demands.

Replacement Considerations

Check for direct pin-to-pin compatible alternatives within the same EZBuck family or other manufacturers offering similar 4A synchronous buck regulators. Verify that any substitute maintains comparable efficiency curves and control interface requirements.
