Product Detailed Parameters
- Description：FILTER RC(PI) 100 OHMS ESD SMD
- Series：-
- Mfr：Alpha & Omega Semiconductor Inc.
- Package：Tape & Reel (TR)
- Type：Low Pass
- Filter Order：2nd
- Technology：RC (Pi)
- Number of Channels：8
- Center / Cutoff Frequency：90MHz (Cutoff)
- Attenuation Value：-35dB @ 800MHz ~ 2.2GHz
- Resistance - Channel (Ohms)：100
- Values：R = 100Ohms, C = 28pF
- ESD Protection：Yes
- Operating Temperature：-40°C ~ 85°C
- Applications：Data Lines for Mobile Devices
- Voltage - Rated：5V
- Mounting Type：Surface Mount
- Package / Case：16-UFDFN Exposed Pad
- Size / Dimension：0.157" L x 0.063" W (4.00mm x 1.60mm)
- Height：0.024" (0.60mm)
- Current：20 mA
- Grade：-
- Qualification：-
Download product information
Overview

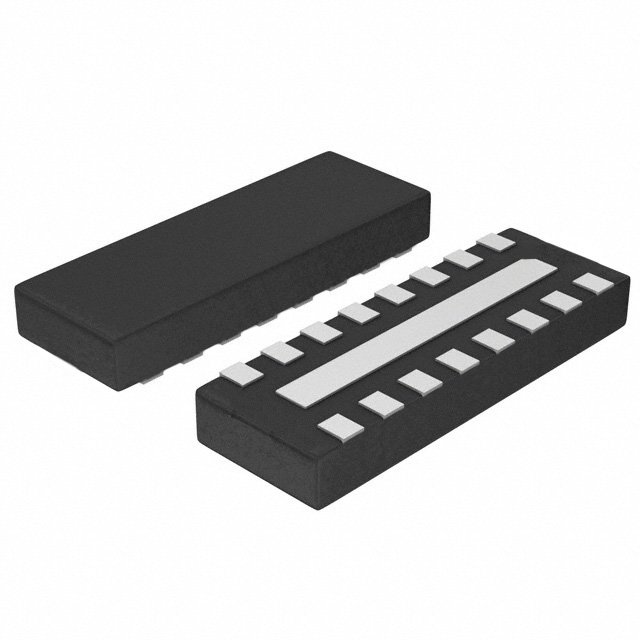

The AOZ8010DT is an RC Pi-filter EMI/RFI filter manufactured by Alpha & Omega Semiconductor Inc. It features a low-pass technology with a resistance of 100 Ohms and capacitance of 28pF. The device supports a rated voltage of 5V and a current of 20 mA. It provides attenuation of -35dB at frequencies between 800MHz and 2.2GHz, with a cutoff frequency of 90MHz. The component includes ESD protection and is housed in a 16-UFDFN surface-mount package.
Feature Summary
- Integrates RC Pi-filter topology for effective EMI suppression
- Includes built-in electrostatic discharge (ESD) protection capabilities
- Designed specifically for data line filtering applications
Applications
- Data lines for mobile devices
- High-speed signal interface protection
- Consumer electronics noise reduction
Procurement Notes
Verify the obsolete status of this part number before procurement planning. Confirm availability of qualified substitutes such as NUF8402MNT4G from onsemi if production continuity is required. Ensure that the replacement component meets the same electrical specifications and package dimensions to maintain design integrity without requiring board layout modifications.
Selection Notes
Select this component for applications requiring compact EMI filtering on 5V data lines. The integrated RC structure simplifies circuit design by combining filtering and ESD protection in a single package. Consider the 16-UFDFN footprint during PCB layout to ensure proper thermal dissipation and signal integrity for high-speed data transmission environments.
Part Context
This component belongs to the EMI/RFI filters category, specifically within the LC and RC networks segment. It is designed to mitigate electromagnetic interference in sensitive electronic circuits. The manufacturer specializes in power management and discrete semiconductor solutions, providing components that enhance signal quality and system reliability in portable and consumer electronics.
Replacement Considerations
NUF8402MNT4G from onsemi is listed as a similar substitute. Verify pin compatibility and electrical performance equivalence before implementation.
