Product Detailed Parameters

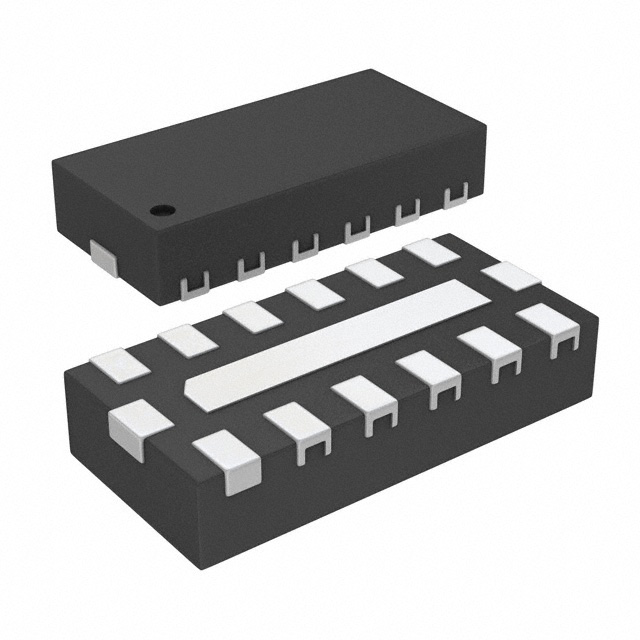

- Description：FILTER RC(PI) 100 OHMS ESD SMD
- Series：-
- Mfr：Alpha & Omega Semiconductor Inc.
- Package：Tape & Reel (TR)
- Type：Low Pass
- Filter Order：2nd
- Technology：RC (Pi)
- Number of Channels：6
- Center / Cutoff Frequency：220MHz (Cutoff)
- Attenuation Value：-20dB @ 1GHz ~ 3GHz
- Resistance - Channel (Ohms)：100
- Values：R = 100Ohms, C = 8pF
- ESD Protection：Yes
- Operating Temperature：-40°C ~ 85°C
- Applications：Data Lines for Mobile Devices
- Voltage - Rated：5V
- Mounting Type：Surface Mount
- Package / Case：12-UFDFN Exposed Pad
- Size / Dimension：0.098" L x 0.047" W (2.50mm x 1.20mm)
- Height：0.024" (0.60mm)
- Current：20 mA
- Grade：-
- Qualification：-
Download product information
Overview
The AOZ8075DI is a six-line EMI filter with integrated electrostatic discharge (ESD) protection, manufactured by Alpha & Omega Semiconductor Inc. It utilizes Trench Vertical Structure [TVS] 2 technology to suppress unwanted EMI/RFI signals while providing robust protection for portable electronic equipment. The device features a series resistor value of 100 Ω and a capacitance value of 8 pF per line, achieving minimum attenuation of -20 dB from 700 MHz to 3.0 GHz. It withstands ±15 kV contact and air discharge voltages, exceeding IEC 61000-4-2 Level 4 standards. Rated for a low operating voltage of 5.0 V, it operates within an ambient temperature range of -40 °C to +85 °C.
Feature Summary
- Integrates EMI filtering and ESD protection across six identical channels using advanced TVS technology.
- Provides superior clamping performance and filter attenuation over the full operating display range.
- Exceeds IEC 61000-4-2 Level 4 immunity test requirements for both contact and air discharge.
Applications
- Protection of color LCD displays in cellular phones
- CCD camera line protection in portable consumer electronics
- Data lines for mobile devices
Procurement Notes
Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and REACH registration details prior to integration. Ensure storage conditions adhere to moisture sensitivity level specifications to maintain device integrity during assembly processes.
Selection Notes
Select this component for applications requiring simultaneous EMI suppression and high-level ESD protection on multiple data lines. The 100 Ω resistance and 8 pF capacitance values are optimized for high-speed signal integrity in portable devices. Consider the 12-UFDFN package dimensions for space-constrained designs.
Part Context
Alpha & Omega Semiconductor Inc. specializes in power semiconductors and discrete components. The AOZ8075DI belongs to their portfolio of protection devices designed for consumer electronics. This specific model addresses the growing need for compact, multi-functional protection solutions in mobile communication hardware.
Replacement Considerations
Public confirmed substitute part numbers: None identified in available documentation.
FAQ
What is the maximum ESD protection capability of the AOZ8075DI?
The device provides effective suppression of ESD voltages exceeding ±15 kV for both contact discharge and air discharge scenarios.
Does the AOZ8075DI meet international ESD immunity standards?
Yes, it exceeds the IEC 61000-4-2 Level 4 ESD immunity test requirements.
