AOZ8530DI

Overview

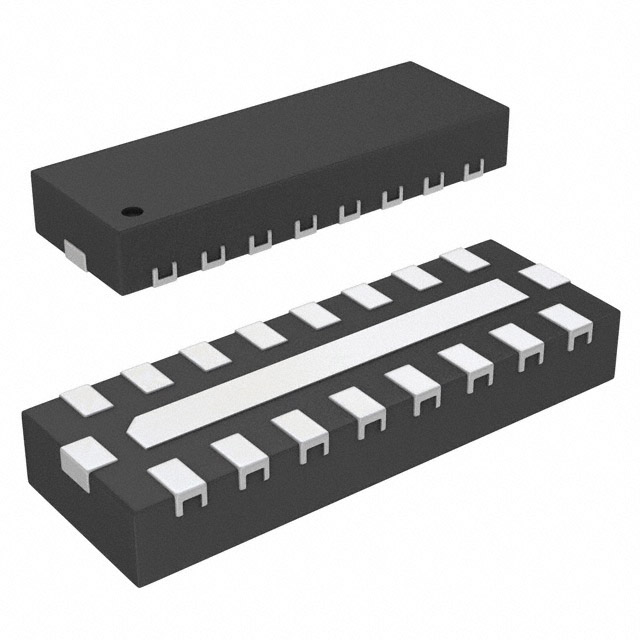

The AOZ8530DI is an eight-channel EMI/RFI filter manufactured by Alpha & Omega Semiconductor Inc. It utilizes LC Pi topology to provide low-pass filtering for data lines in mobile devices. The component features a rated voltage of 5V and operates within a temperature range of -40°C to 85°C. Key electrical parameters include an inductance of 17nH and capacitance of 16pF per channel. It is designed for surface mount installation in compact packages, offering integrated ESD protection capabilities alongside signal integrity maintenance.

Feature Summary

• Eight-channel configuration for simultaneous multi-line data protection
• LC Pi topology for effective low-pass filtering performance
• Integrated electrostatic discharge (ESD) protection functionality
• Surface mount design optimized for space-constrained mobile applications

Applications

• Data lines for mobile devices
• Portable electronic equipment
• Battery chargers
• Energy-efficient systems

Procurement Notes

Verify the current product status as sources indicate this specific part number may be obsolete. Confirm availability through authorized distributors or check for valid replacement components if production continuity is required. Ensure the selected variant matches the required SMD package and RoHS compliance standards before finalizing procurement decisions.

Selection Notes

Select this component when designing circuits requiring multi-channel EMI suppression for 5V data interfaces. The 17nH inductance and 16pF capacitance values are suitable for high-speed digital signals in consumer electronics. Consider the operating temperature range and surface mount constraints during PCB layout to ensure optimal thermal and electrical performance.

Part Context

This component belongs to the EMI/RFI Filters category, specifically LC and RC Networks. It is produced by Alpha & Omega Semiconductor Inc., a manufacturer specializing in power semiconductor technologies. The device serves as a passive filtering solution for signal integrity management in portable and industrial electronics.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative multi-channel EMI filters from the same manufacturer or other suppliers if this obsolete part is no longer sourced.
