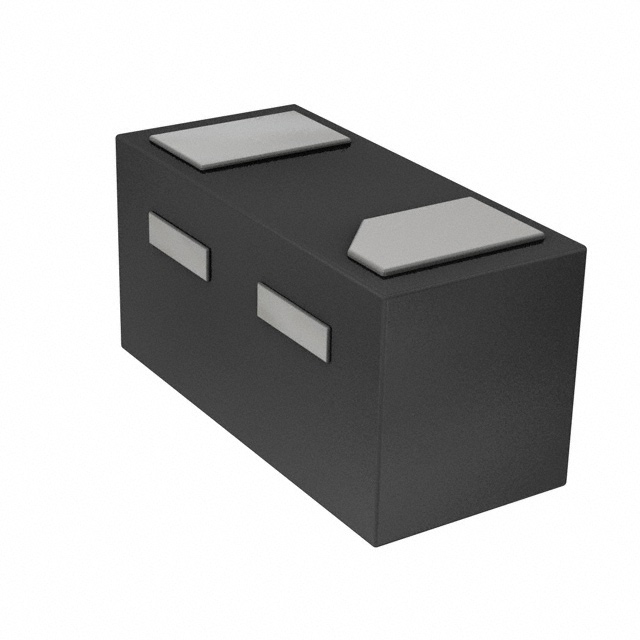

AOZ8S530BLS-07

AOZ8S530BLS-07 is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Alpha & Omega Semiconductor Inc.. Its product description is TVS DIODE 7VWM 14.3VC 2WLCSP. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for AOZ8S530BLS-07

• Description：TVS DIODE 7VWM 14.3VC 2WLCSP
• Series：-
• Mfr：Alpha & Omega Semiconductor Inc.
• Package：Tape & Reel (TR)
• Type：Zener
• Bidirectional Channels：1
• Voltage - Reverse Standoff (Typ)：7V (Max)
• Voltage - Breakdown (Min)：8V
• Voltage - Clamping (Max) @ Ipp：14.3V (Typ)
• Current - Peak Pulse (10/1000µs)：18A (8/20µs)
• Power - Peak Pulse：-
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：21pF @ 1MHz
• Operating Temperature：-40°C ~ 125°C (TA)
• Mounting Type：Surface Mount
• Package / Case：0201 (0603 Metric)
• Supplier Device Package：2-WLCSP (0.6x0.3)
• Unidirectional Channels：-
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for AOZ8S530BLS-07
