AP-01

Power Line Filter Modules Overview

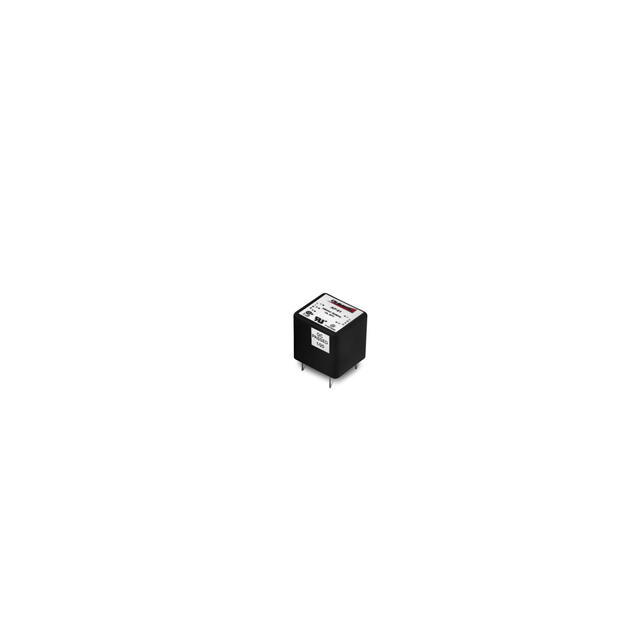

The Ohmite AP-01 is a single-phase EMC/EMI line filter module designed for AC power line noise suppression. It operates at a rated current of 1 A and supports voltage ratings of 110 VAC and 250 VAC at 50/60 Hz frequencies. The component utilizes a single-stage filtering architecture and features PC pin mounting for integration into electronic assemblies.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC filtering capability
• PC pin mounting configuration

Power Line Filter Modules Applications

• AC power line noise suppression
• Single-phase equipment EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating (110 VAC or 250 VAC) required for the target application against the datasheet specifications. Confirm that the 1 A current rating aligns with the circuit load requirements to ensure safe operation within the module's thermal and electrical limits.

Power Line Filter Modules Selection Notes

Select this component when single-stage attenuation is sufficient for the intended electromagnetic interference environment. Ensure the physical footprint of the PC pin mounting style matches the printed circuit board layout constraints and that the operating frequency range covers the system's 50/60 Hz input.

Power Line Filter Modules Part Context

This part belongs to Ohmite's passive component portfolio, specifically categorized as an EMC/EMI line filter module. It serves as a solution for mitigating conducted emissions in single-phase AC power applications, distinct from discrete resistive components.

Power Line Filter Modules FAQ

What is the maximum current rating?

The AP-01 has a rated current capacity of 1 A.

Does it support both 110 VAC and 250 VAC?

Yes, the module is specified for operation at both 110 VAC and 250 VAC levels.
