AP7342D-1528FS6-7

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The AP7342D-1528FS6-7 is a dual low-dropout regulator from Diodes Incorporated, featuring two independent channels with fixed output voltages of 1.5V and 2.8V. It operates within an input voltage range of 1.7V to 5.25V and guarantees an output current of 150mA per channel. The device provides high ripple rejection of 75dB at 1kHz and maintains low output noise of 60µVrms across the 10Hz to 100kHz bandwidth. Quiescent current is specified as low as 35µA, while dropout voltage varies between 0.39V and 0.50V depending on load conditions.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• Dual-channel architecture with individual enable inputs for independent power control
• High ripple rejection ratio ensuring stable performance in noisy environments
• Low output noise characteristics suitable for sensitive RF applications
• Integrated short-circuit protection and thermal shutdown mechanisms

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• Smart phones/Tablets
• RF supplies
• Cameras
• Portable videos
• Wireless communication

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance and lead-free status against current regulatory standards. Ensure ordering suffixes match specific package and discharge requirements. Validate datasheet revision compatibility before finalizing procurement specifications.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Evaluate input voltage ranges against system supply rails to ensure proper regulation margins. Consider thermal dissipation capabilities relative to PCB layout and ambient operating temperatures. Assess quiescent current consumption against battery life requirements for portable devices. Verify output capacitor ESR stability across the full operating temperature range.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

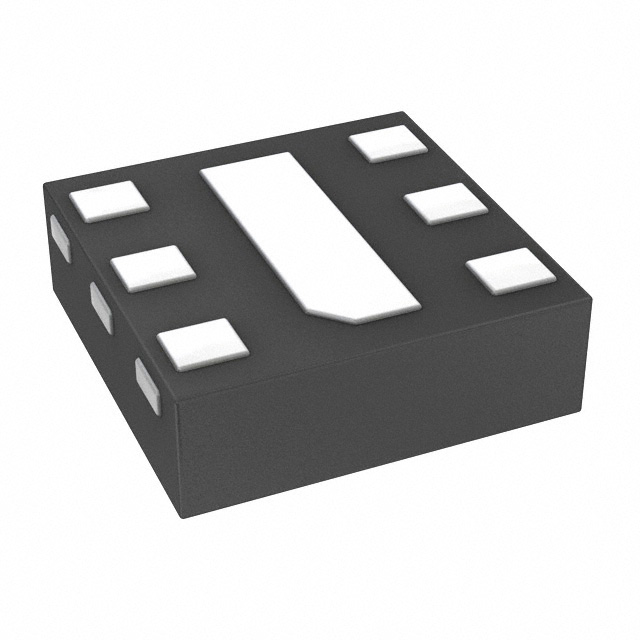

This component belongs to the AP7342 series of dual LDO regulators designed for low-power handheld equipment. It utilizes CMOS technology to achieve high accuracy and low power consumption. The series supports various fixed output voltage combinations within a compact X2-DFN1212-6 package, facilitating dense PCB layouts.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

The datasheet explicitly states that the AP7342 is not recommended for new designs and recommends using the AP7345 instead.
